Fuel Feed Hose Replacement (Flex Sensor to Fuel Feed Front Pipe E-85)
WARNING: This page is about a different variant/trim than selected.

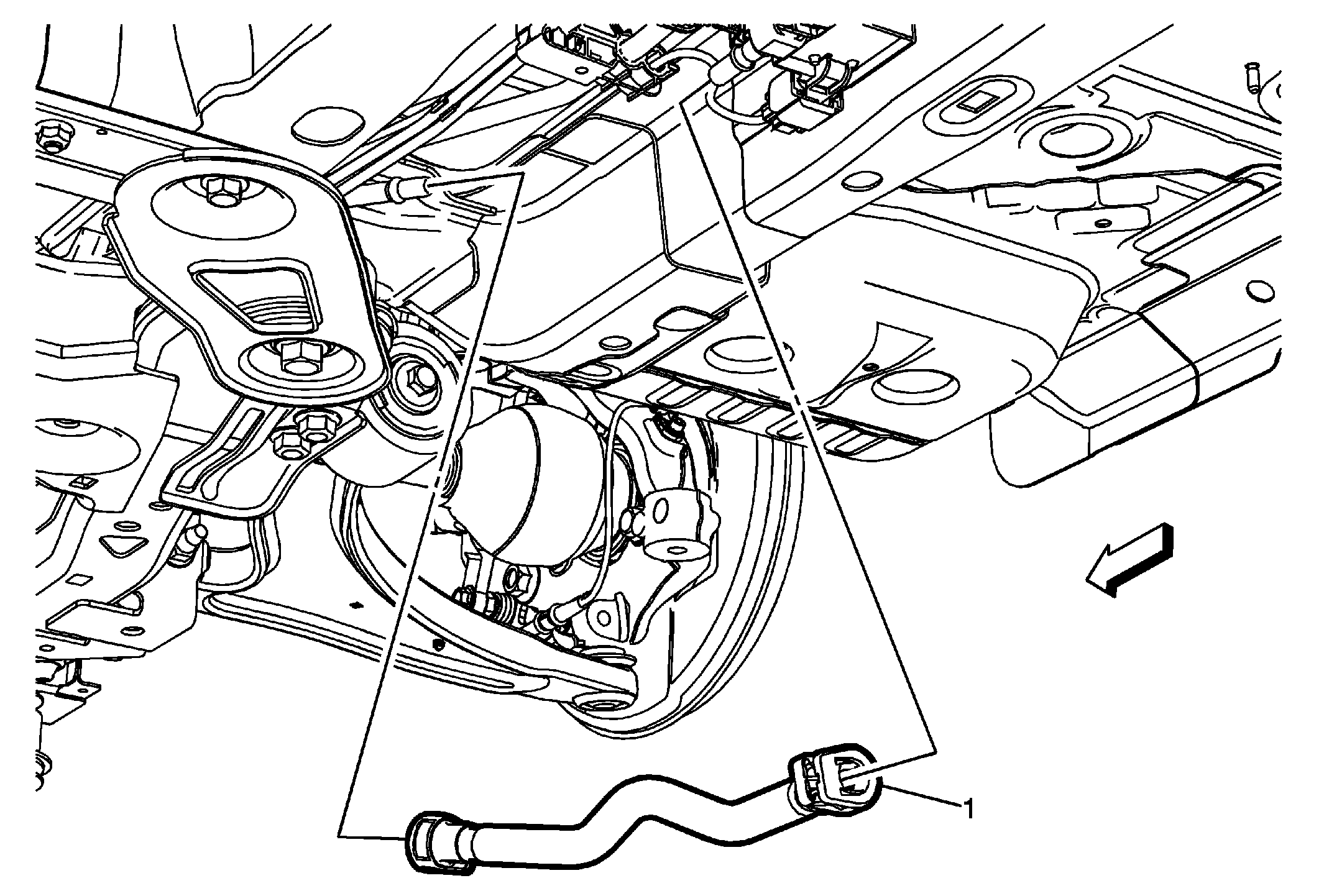

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Fuel Feed Hose.. Preliminary Procedure Disconnect the evaporative emission quick connects. Refer to Plastic Collar Quick Connect Fitting Service . |
