Flexible Fuel Sensor Replacement

WARNING: This page is about a different variant/trim than selected.

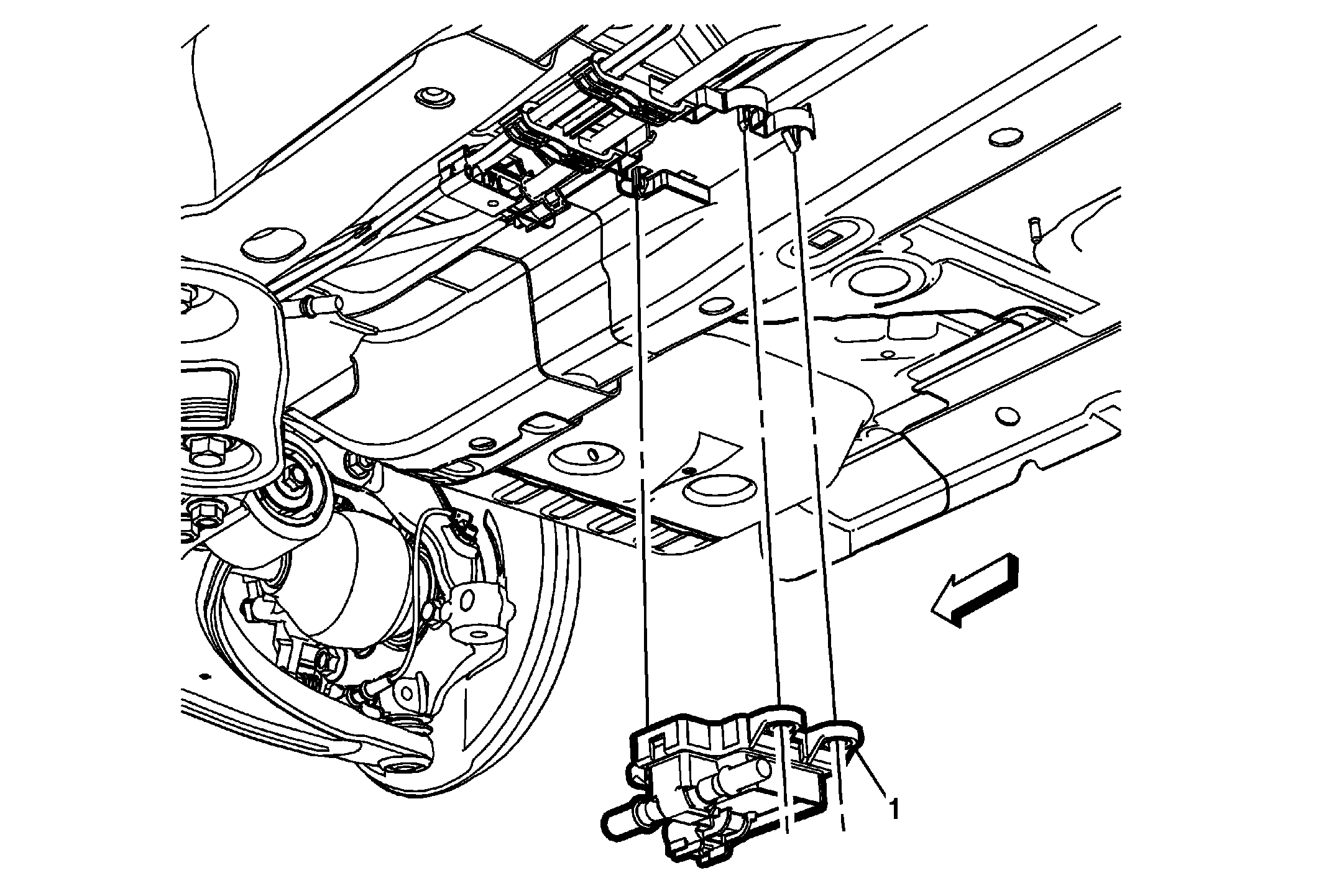

Fig 1: Flexible Fuel Sensor

GM2676777

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove fuel feed hose- flex sensor to fuel feed pipe. Refer to Fuel Feed Hose Replacement (Flex Sensor to Fuel Feed Front Pipe E-85)
Remove fuel feed hose- flex sensor to fuel feed front pipe. Refer to Fuel Feed Hose Replacement (Flex Sensor to Fuel Feed Front Pipe E-85)

1

Flexible Fuel Sensor.

Procedure

Disconnect the electrical connector.
Depress tabs to release sensor.
