Evaporative Emission Canister Replacement

WARNING: This page is about a different variant/trim than selected.

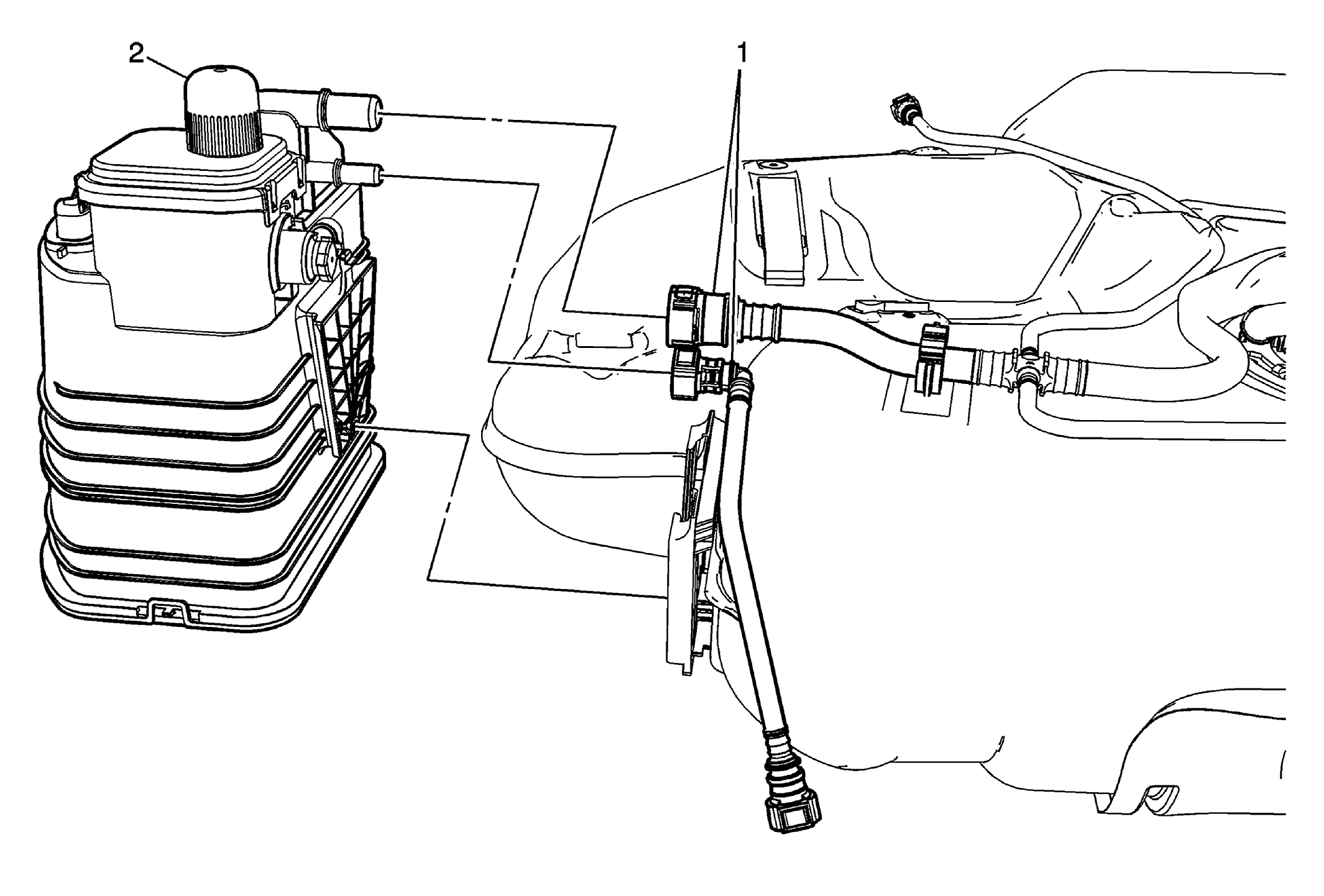

Fig 1: Evaporative Emission Canister & Hoses

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the fuel tank. Refer to Fuel Tank Replacement .
1	Evaporative Emission Hose (Qty: 2) Procedure Disconnect the quick connects. Refer to Plastic Collar Quick Connect Fitting Service .
2	Evaporative Emission Canister Procedure Disconnect the electrical connector. Release the retaining tab.

Callout

Component Name

Preliminary Procedure
Remove the fuel tank. Refer to Fuel Tank Replacement .

Evaporative Emission Hose (Qty: 2)
Procedure
Disconnect the quick connects. Refer to Plastic Collar Quick Connect Fitting Service .

Evaporative Emission Canister

Procedure
