Camshaft Position Actuator Intake Solenoid Valve Replacement

WARNING: This page is about a different variant/trim than selected.

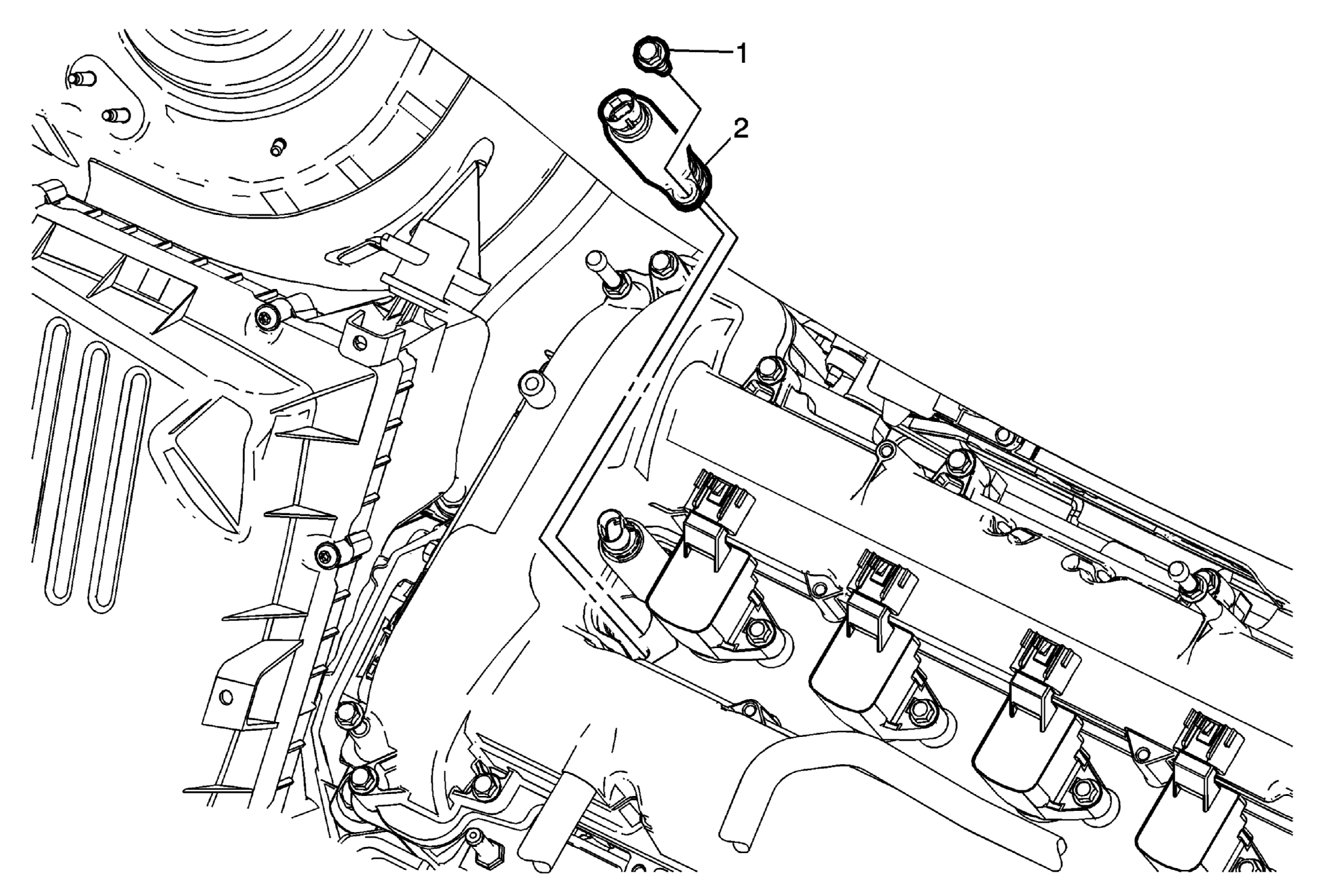

Fig 1: Camshaft Position Actuator Intake Solenoid Valve

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement
1	Camshaft Position Actuator Intake Solenoid Valve Fastener CAUTION: Refer to Fastener Caution Tighten 10 N.m (89 lb in)
2	Camshaft Position Actuator Intake Solenoid Valve Procedure Disconnect the camshaft position actuator solenoid valve harness connector. Clean the cylinder head mating surfaces before assembly. Lubricate the camshaft position actuator solenoid valve O-ring seals with clean engine oil.

Callout

Component Name

Preliminary Procedure
Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement

Camshaft Position Actuator Intake Solenoid Valve Fastener

CAUTION:

Tighten
10 N.m (89 lb in)

Camshaft Position Actuator Intake Solenoid Valve

Procedure

Disconnect the camshaft position actuator solenoid valve harness connector.
Clean the cylinder head mating surfaces before assembly.
Lubricate the camshaft position actuator solenoid valve O-ring seals with clean engine oil.
