Hydraulic Clutch Low Pressure Hose Replacement

WARNING: This page is about a different variant/trim than selected.

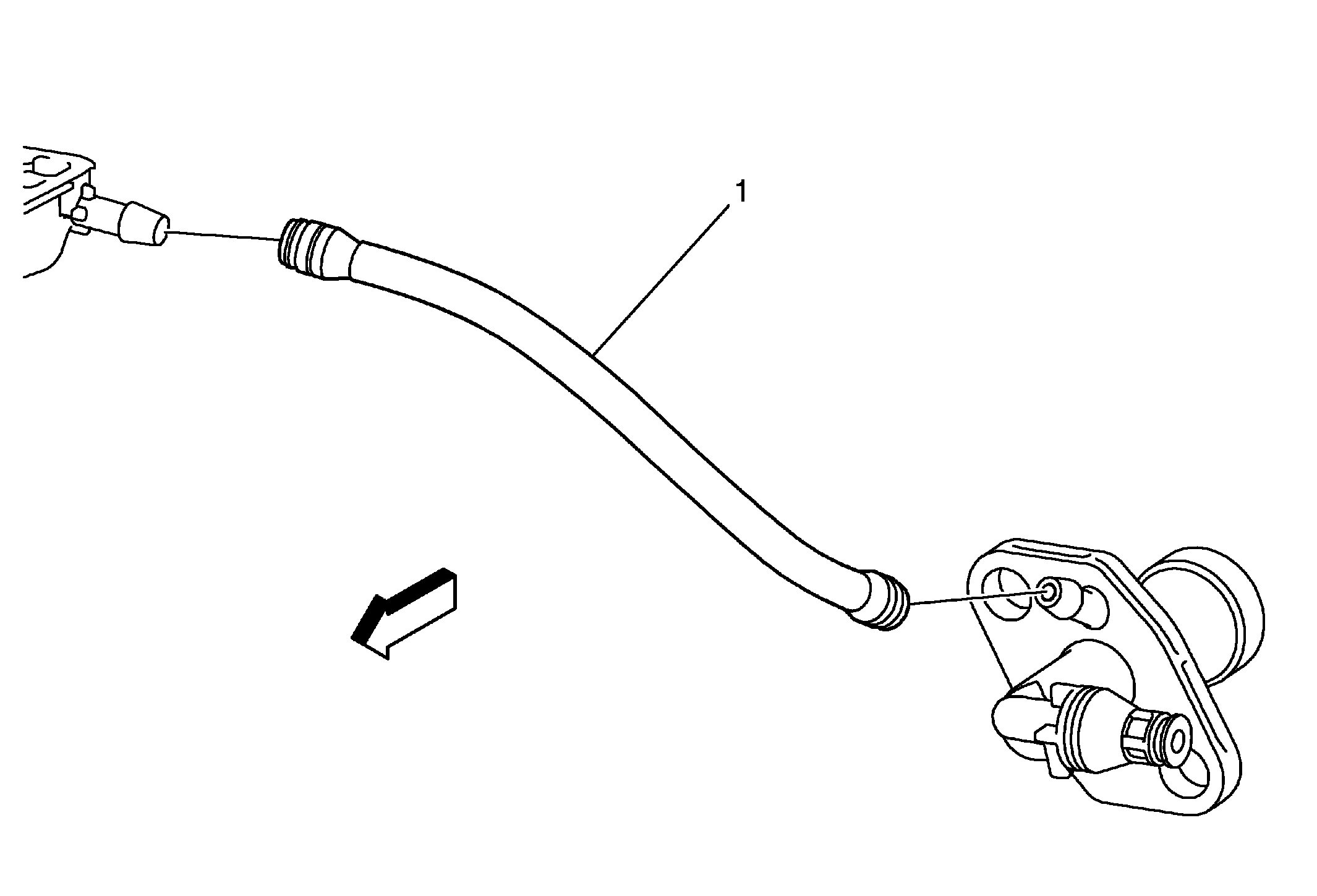

Fig 1: Hydraulic Clutch Low Pressure Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Reposition the expansion tank to the cooling system. Bleed the clutch system so there is no fluid in the hose. Refer to Hydraulic Clutch System Bleeding .
1	Hydraulic Clutch Low Pressure Hose CAUTION: Do not twist or damage the pipe assembly when removing the pipe assembly. Procedure Refill the brake fluid container and bleed the clutch. Refer to Hydraulic Clutch System Bleeding . Test the brakes and clutch after replacing the hose.

Callout

Component Name

Preliminary Procedures

Reposition the expansion tank to the cooling system.
Bleed the clutch system so there is no fluid in the hose. Refer to Hydraulic Clutch System Bleeding .

Hydraulic Clutch Low Pressure Hose

CAUTION:

Do not twist or damage the pipe assembly when removing the pipe assembly.

Procedure

Refill the brake fluid container and bleed the clutch. Refer to Hydraulic Clutch System Bleeding .
Test the brakes and clutch after replacing the hose.
