Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission. Refer to Transmission Replacement .

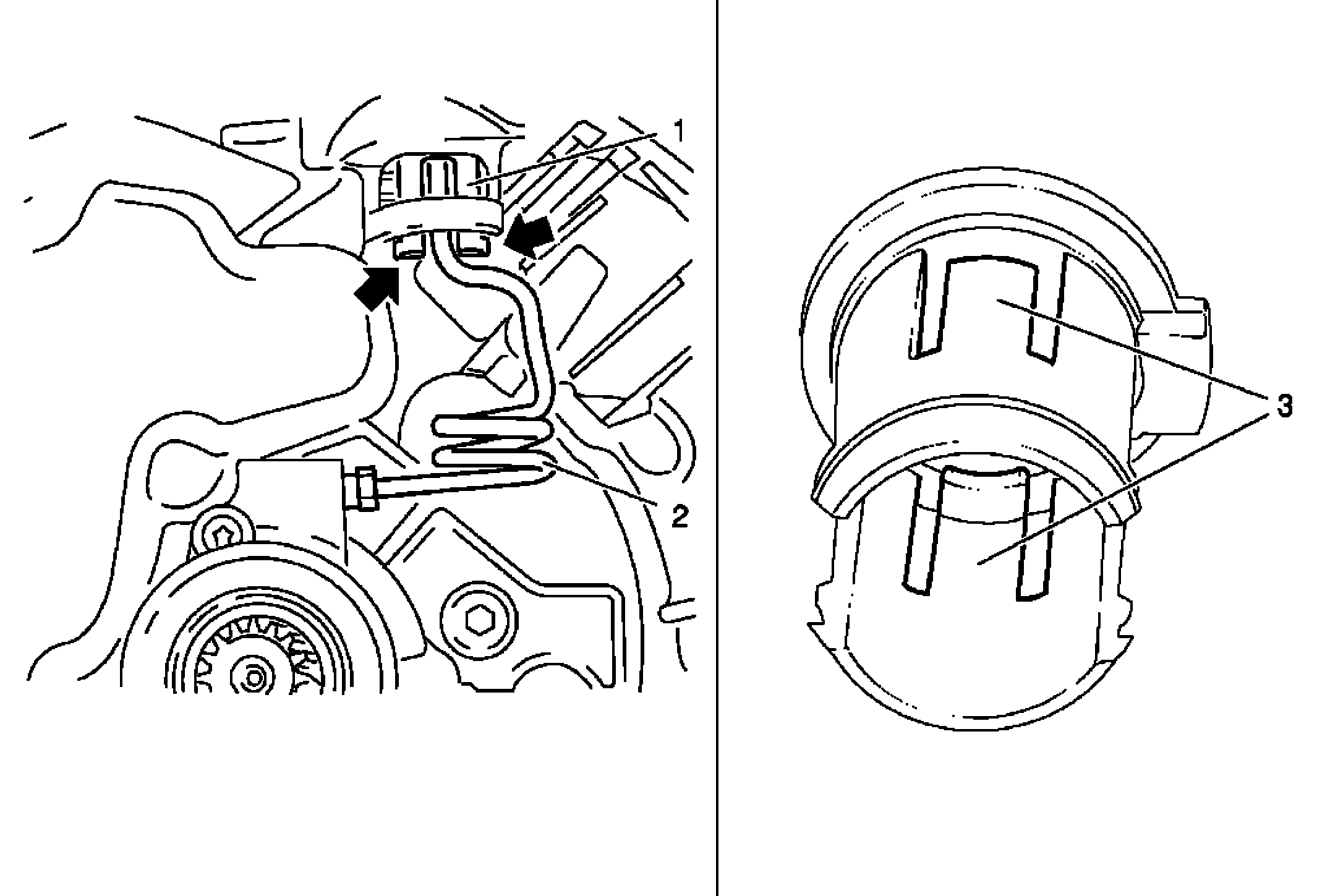

    2. Fig 1: Clutch Release Bearing And Attached Components
    GM2156552Courtesy of GENERAL MOTORS COMPANY
  2. Remove pressure line fastening sleeve (1).
    • Unlatch fastening sleeve for pressure line on clutch housing (arrows).
    • Draw fastening sleeve out of transmission slightly.
    • Detach fastening sleeve for pressure line.
    • Carefully unlatch 2x retaining lug (3).

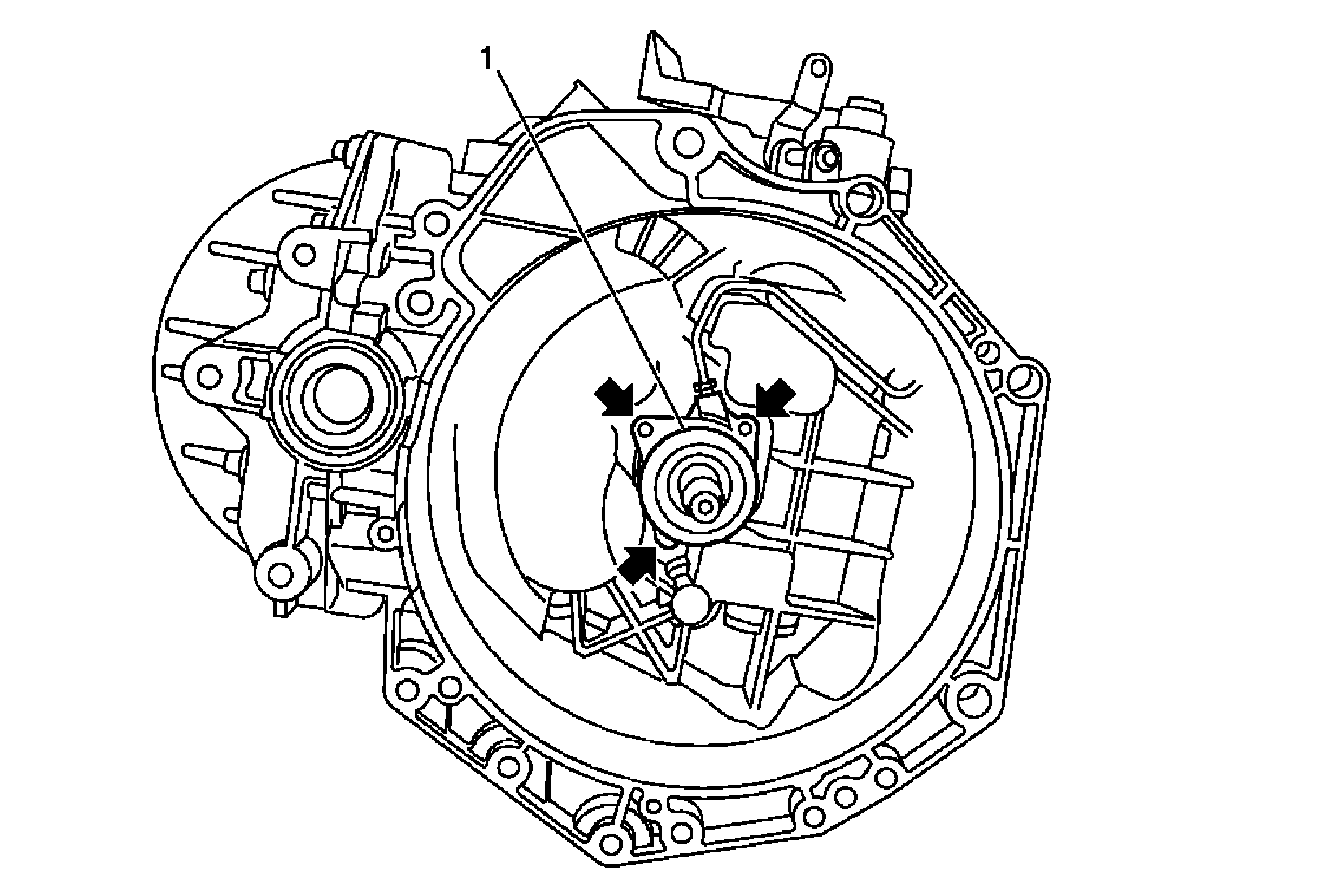

    3. Fig 2: Central Release With Hydraulic Line
    GM2156553Courtesy of GENERAL MOTORS COMPANY
  3. Remove central release (1) with hydraulic line.

    Remove 3x fasteners (arrow).
