Installation Procedure

WARNING: This page is about a different variant/trim than selected.

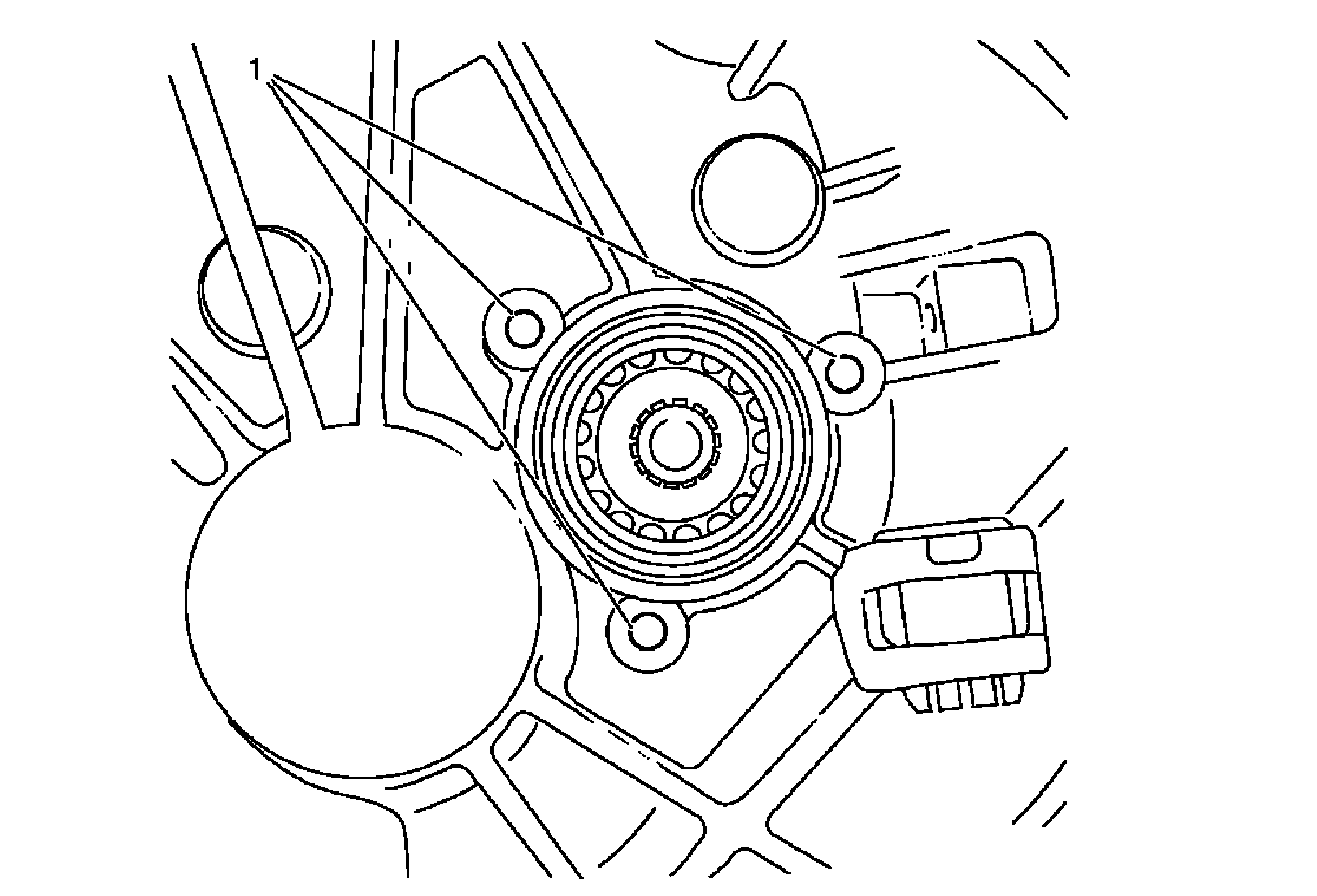

    Fig 1: Central Release Location
    GM2156554Courtesy of GENERAL MOTORS COMPANY
  1. Clean 3x thread (1) in transmission.
    2. NOTE:

    Note installation position.

  2. Install fastening sleeve for pressure line.

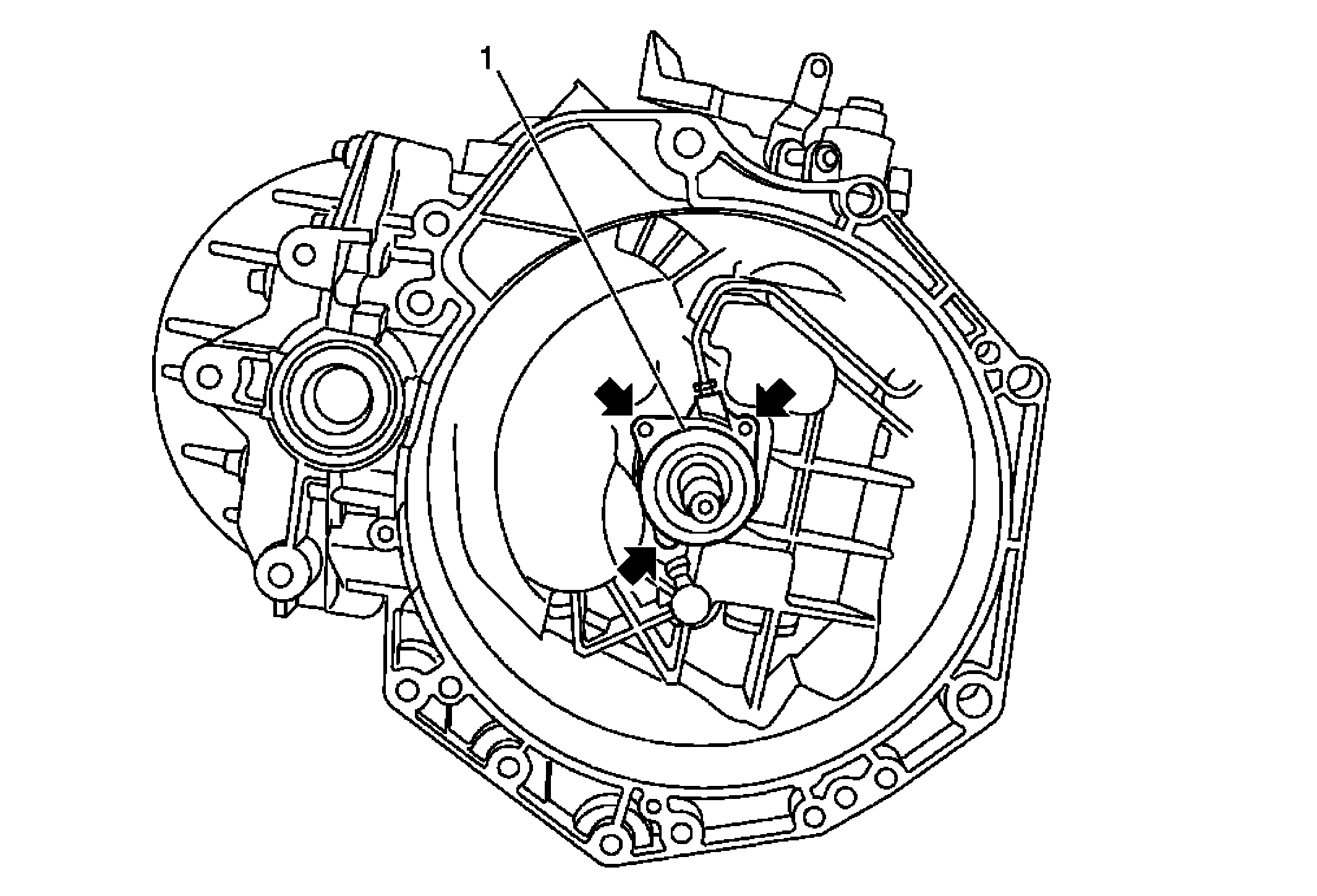

    3. Fig 2: Central Release And Hydraulic Line Location
    GM2156555Courtesy of GENERAL MOTORS COMPANY
    NOTE:
    • Use new bolts.
    • It is essential to avoid pulling the central release at an angle.
  3. Install central release (1) with hydraulic line.
    • Clip hydraulic line in sleeve.
    • Lightly coat seal ring in central release with transmission fluid.
    • Preassemble 3 fasteners evenly in contact with the flange.
    • Tighten the 3 fasteners from central release (arrow) to 6 N.m (53.1 lb in).
  4. Install the transmission. Refer to Transmission Replacement .
