Clutch Actuator Cylinder Replacement

WARNING: This page is about a different variant/trim than selected.

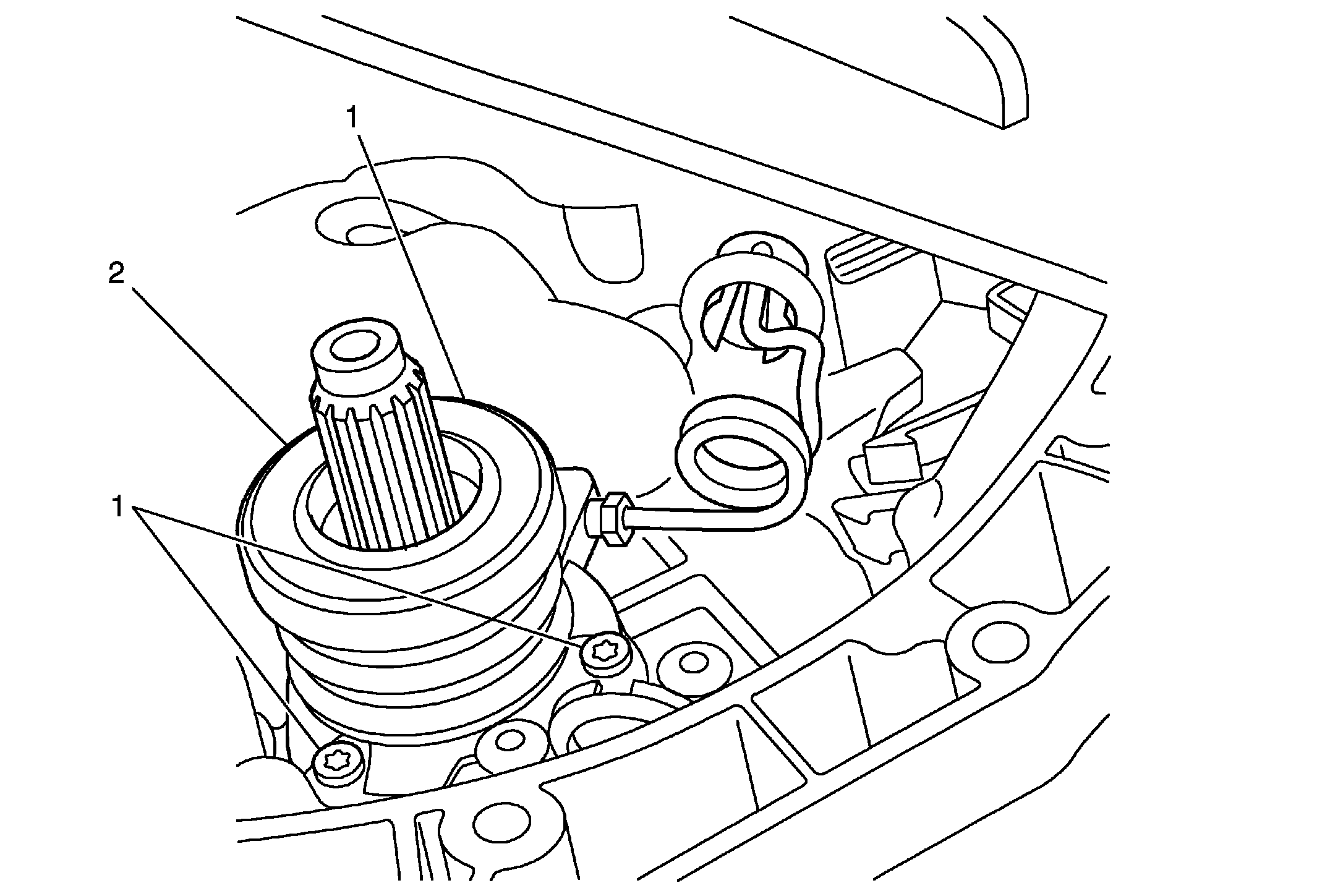

Fig 1: Clutch Actuator Cylinder & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the transmission. Refer to Transmission Replacement . Valid only for F40: Disconnect the clutch actuator cylinder pipe from the clutch actuator cylinder. Refer to Clutch Actuator Cylinder Pipe Replacement .
1	Clutch Actuator Cylinder Fastener (Qty:3) CAUTION: Refer to Fastener Caution . Procedure Use the appropriate thread sealant on the fasteners. Refer to Adhesives, Fluids, Lubricants, and Sealers for the appropriate sealant. Tighten 20 N.m (15 lb ft) plus 60 degrees
2	Clutch Actuator Cylinder Procedure Bleed the clutch actuator cylinder after fitting the gearbox. Refer to Hydraulic Clutch System Bleeding .

Callout

Component Name

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the transmission. Refer to Transmission Replacement .
Valid only for F40: Disconnect the clutch actuator cylinder pipe from the clutch actuator cylinder. Refer to Clutch Actuator Cylinder Pipe Replacement .

Clutch Actuator Cylinder Fastener (Qty:3)

CAUTION:

Refer to Fastener Caution .

Procedure
Use the appropriate thread sealant on the fasteners. Refer to Adhesives, Fluids, Lubricants, and Sealers for the appropriate sealant.
Tighten
20 N.m (15 lb ft) plus 60 degrees

Clutch Actuator Cylinder
Procedure
Bleed the clutch actuator cylinder after fitting the gearbox. Refer to Hydraulic Clutch System Bleeding .
