Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission. Refer to Transmission Replacement .

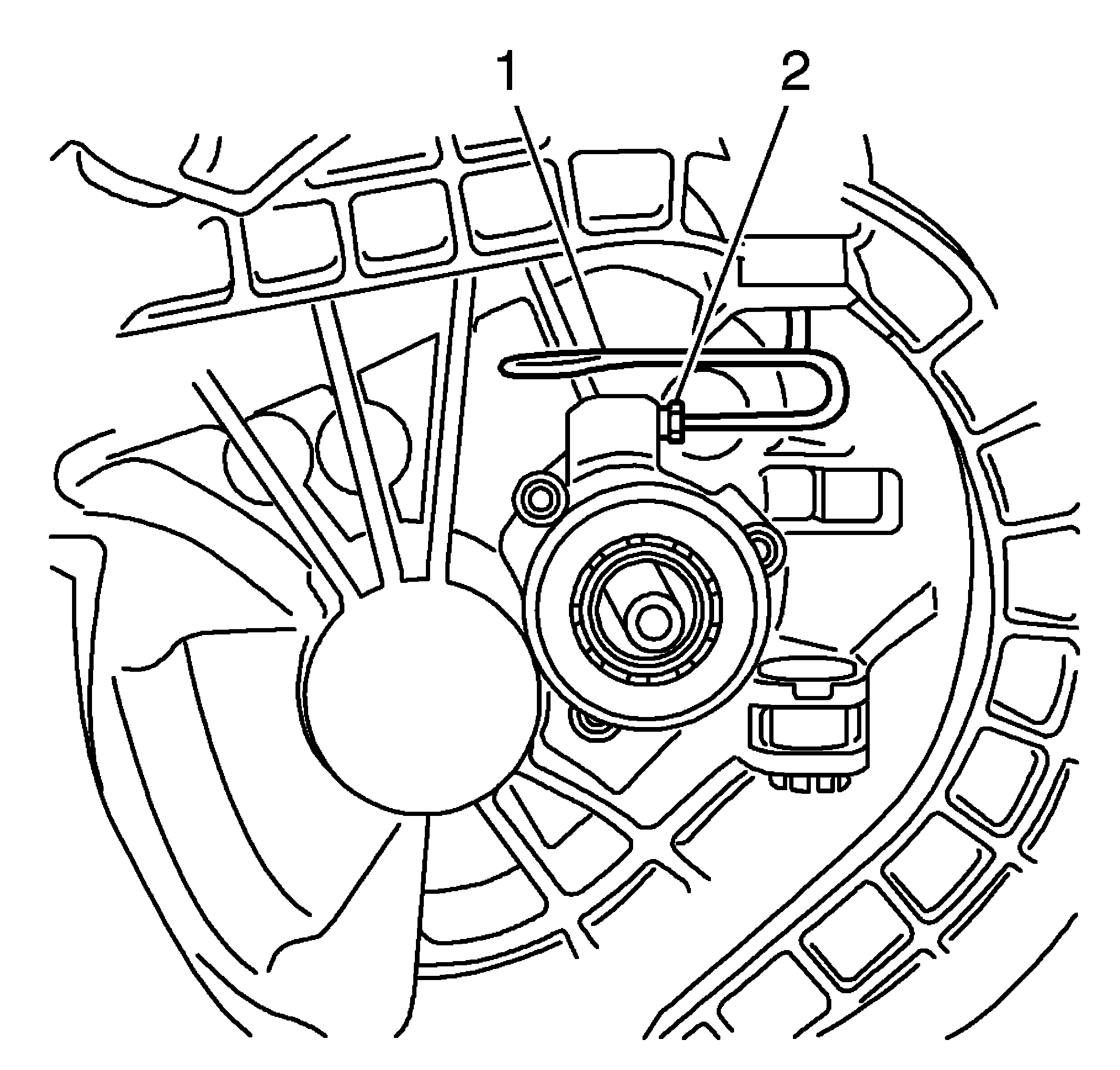

    2. Fig 1: Clutch Actuator Pressure Line And Bolt
    GM2018717Courtesy of GENERAL MOTORS COMPANY
  2. Detach pressure line (1) from central release and unscrew bolt (2).

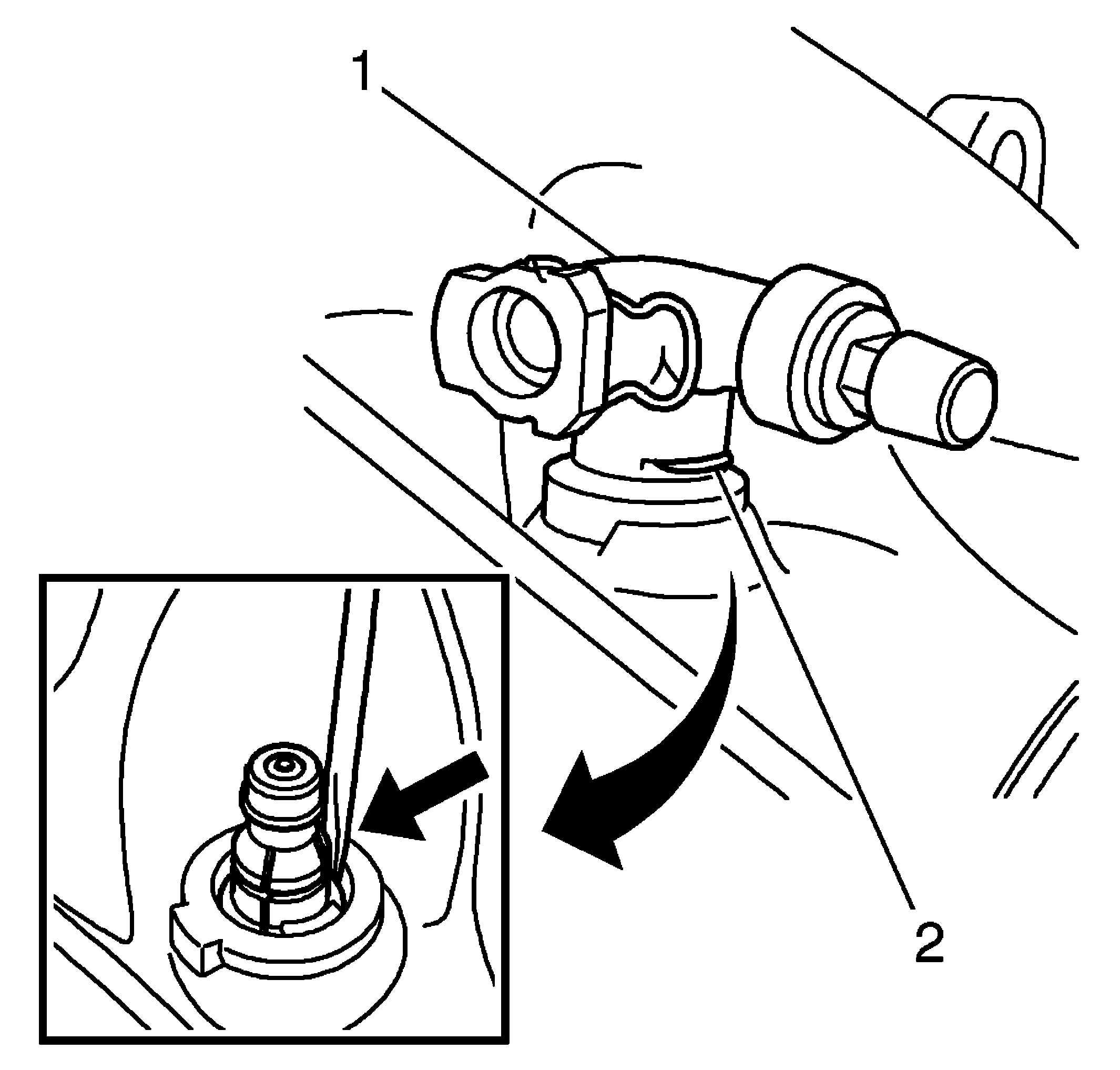

    3. Fig 2: Clutch Actuator Pressure Line And Retaining Clip
    GM2018718Courtesy of GENERAL MOTORS COMPANY
  3. Remove connector for pressure line (1).
    1. Remove retaining clip (2).
    2. Remove connector.
      3. NOTE:

      If necessary, bend squeeze together slightly.

    3. Replace retaining clip in connector.
  4. Remove pressure line.
      NOTE:

      Carefully disengage retaining lugs.

    1. Clip pressure line out of fastening sleeve using a screwdriver or equivalent.
    2. Remove pressure line.

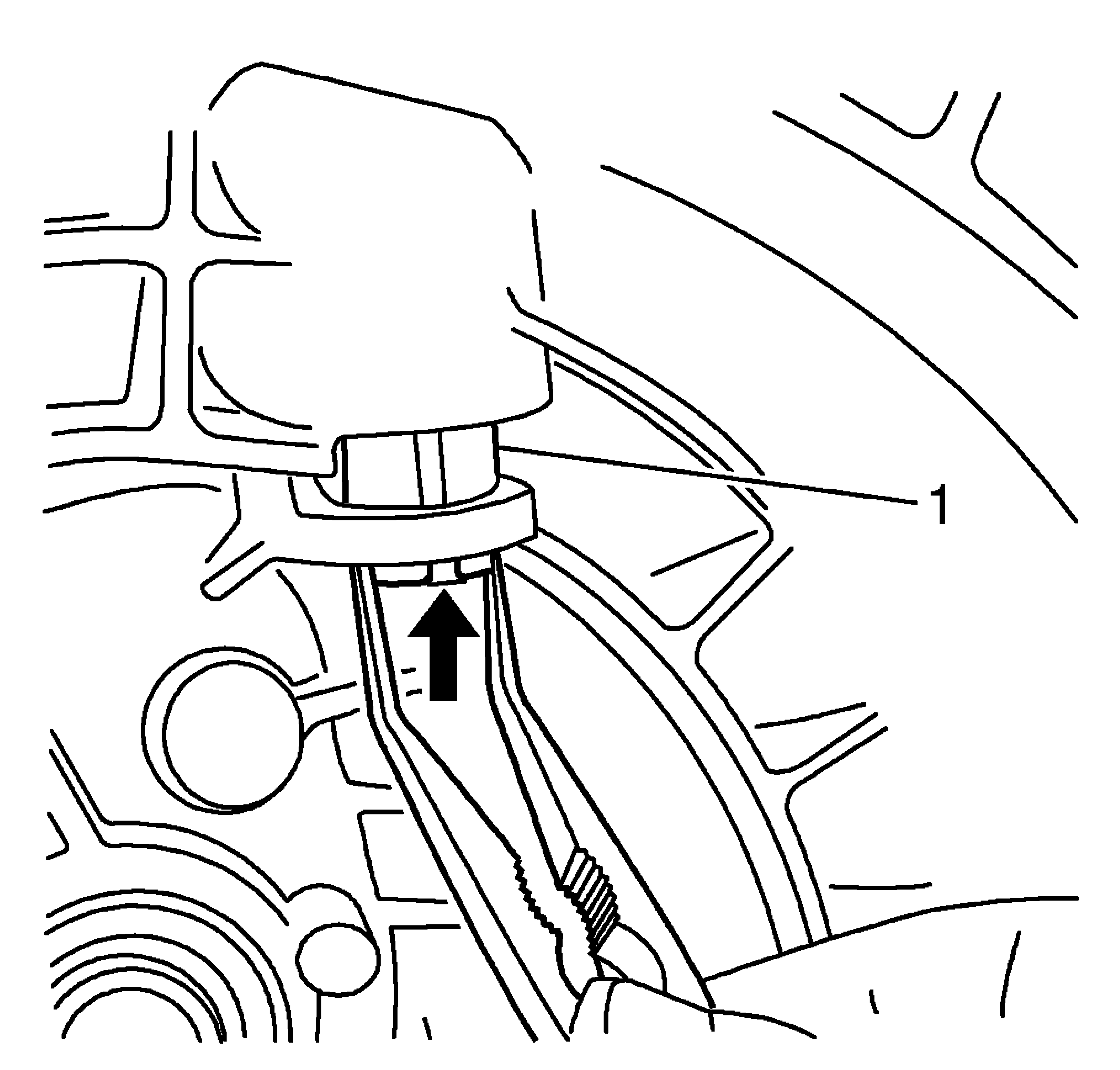

    5. Fig 3: Slide Fastening Sleeve Upward
    GM2018719Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Fastening sleeve must be replaced after removal.

  5. Remove fastening sleeve.
    1. Disengage fastening sleeve (1) from clutch housing.
    2. Slide fastening sleeve upward.
    3. Remove fastening sleeve.
  6. Check seal ring and pressure line for damage, replace if necessary.
