Installation Procedure

WARNING: This page is about a different variant/trim than selected.

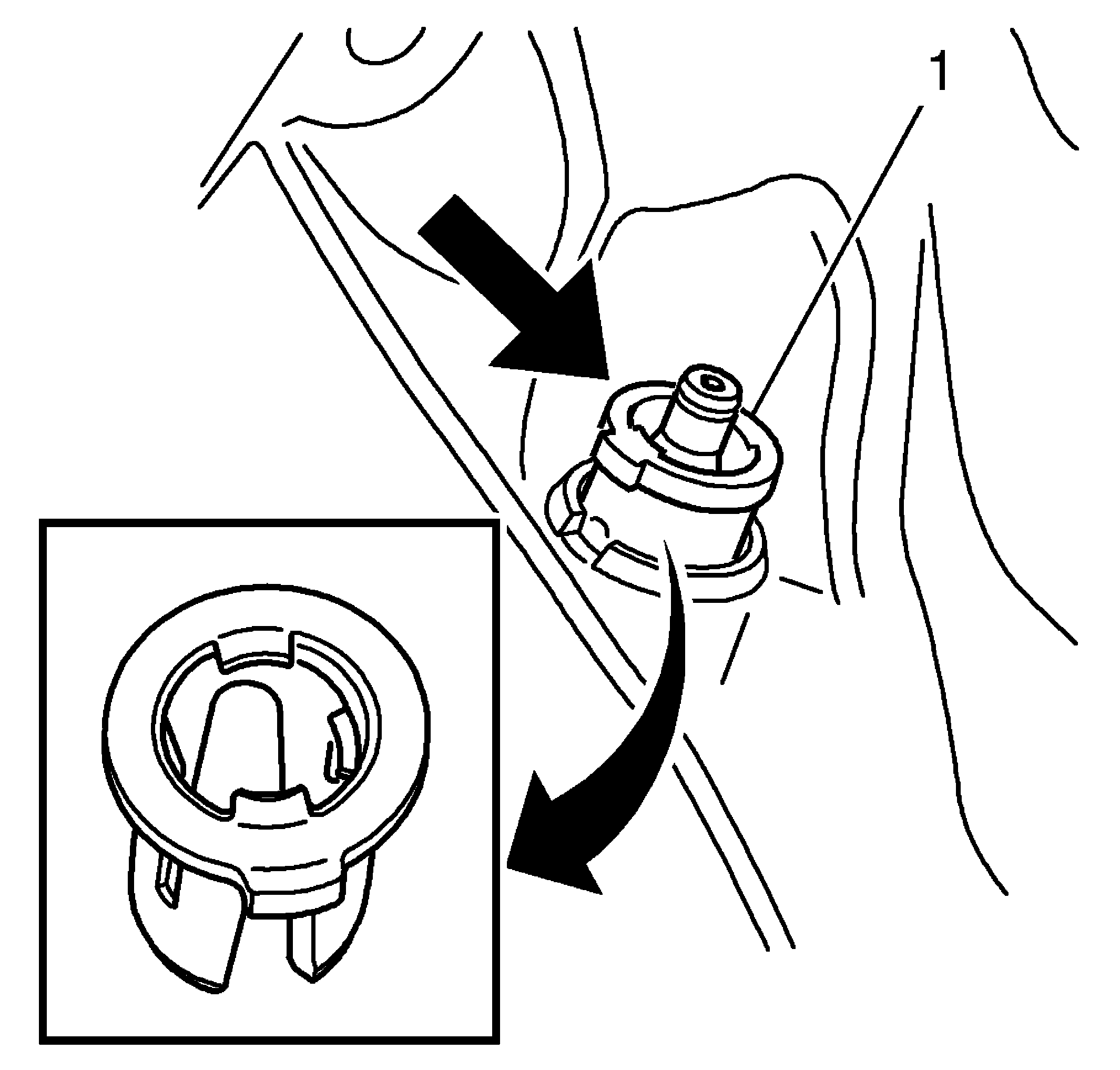

    Fig 1: Fastening Sleeve And Insertion Slot Location
    GM2018720Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Insert projection on sleeve in the slot provided in the transmission.

  1. Attach fastening sleeve (1). Push into transmission housing - must noticeably engage.
    2. Fig 2: Clutch Actuator Pressure Line And Bolt
    GM2018717Courtesy of GENERAL MOTORS COMPANY
  2. Install pressure line (1) and insert in fastening sleeve - must noticeably engage.
  3. Attach pressure line and tighten nut (2).

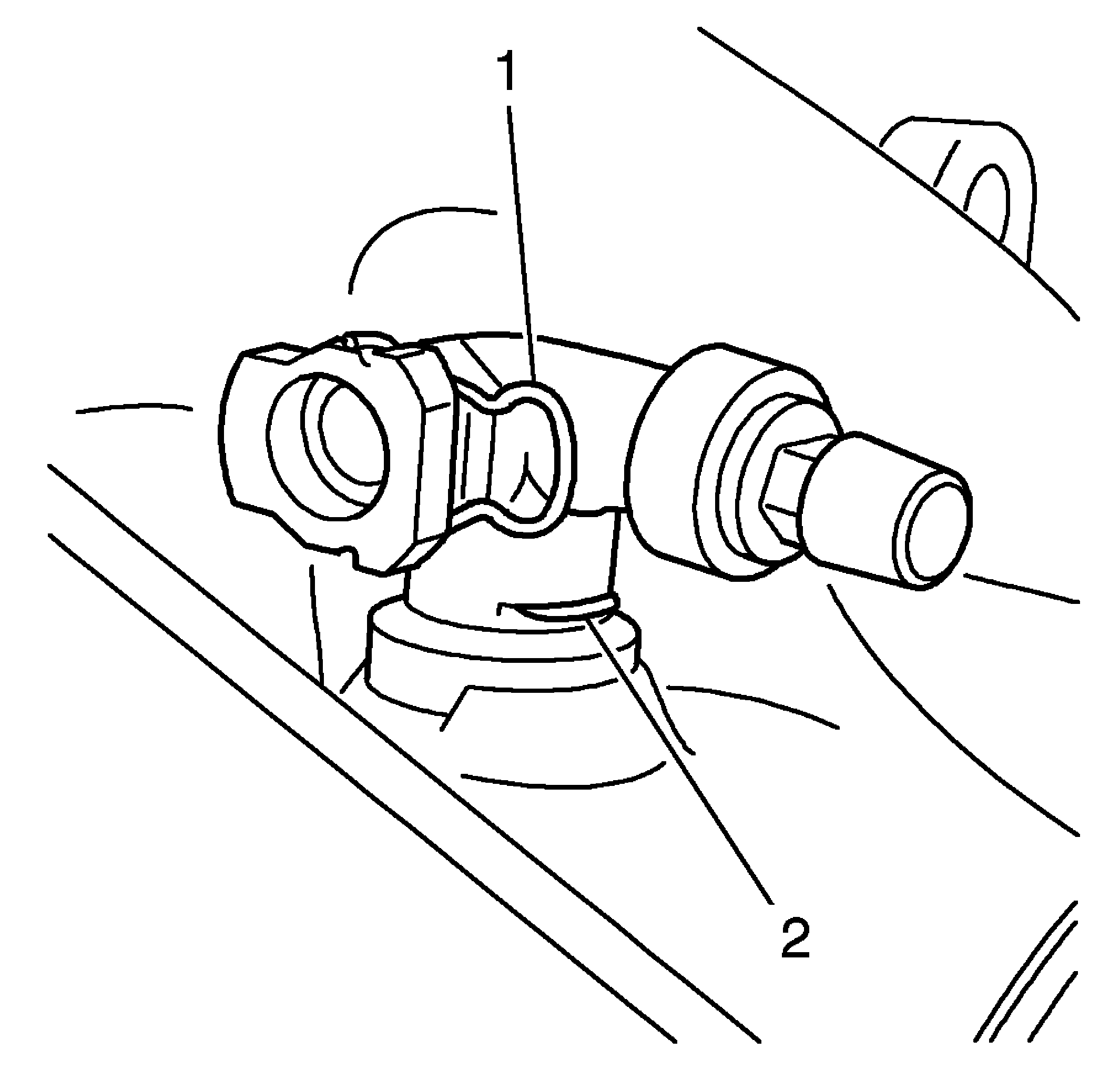

    4. Fig 3: Pressure Line And Retaining Clip
    GM2018721Courtesy of GENERAL MOTORS COMPANY
  4. Attach connector for pressure line (1) and put connector on pressure line - retaining clip (2) must noticeably engage.
  5. Install the transmission. Refer to Transmission Replacement .
