Transmission Fluid Pump, Front Differential Carrier Baffle, and Front Differential Ring Gear Removal (6T40 Hybrid)
WARNING: This page is about a different variant/trim than selected.

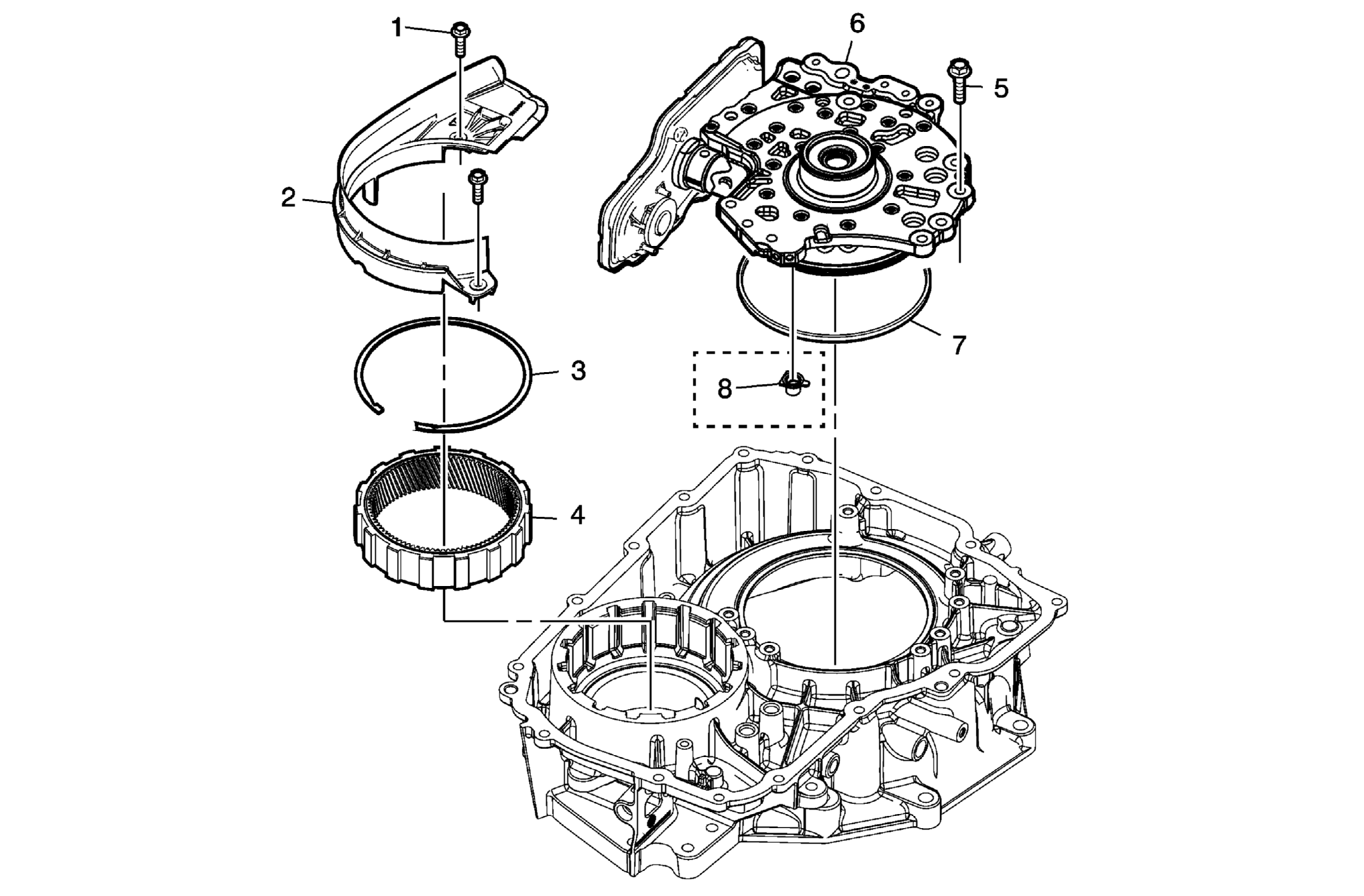

| Callout | Component Name |
|---|---|
| 1 | Front Differential Carrier Baffle Bolts M6x25 (Qty:2) |
| 2 | Front Differential Carrier Baffle |
| 3 | Front Differential Ring Gear Retainer
NOTE:
Note the direction of the taper to ensure proper installation. |
| 4 | Front Differential Ring Gear |
| 5 | Fluid Pump Bolts M8x33 (Qty:8) |
| 6 | Fluid Pump Assembly |
| 7 | Torque Converter and Differential Housing Seal |
| 8 | A/Trans Auxiliary Fluid Inlet Pump Seal-Hybrid Models |
