Fluid Pump w/Valve Trains Assemble

WARNING: This page is about a different variant/trim than selected.

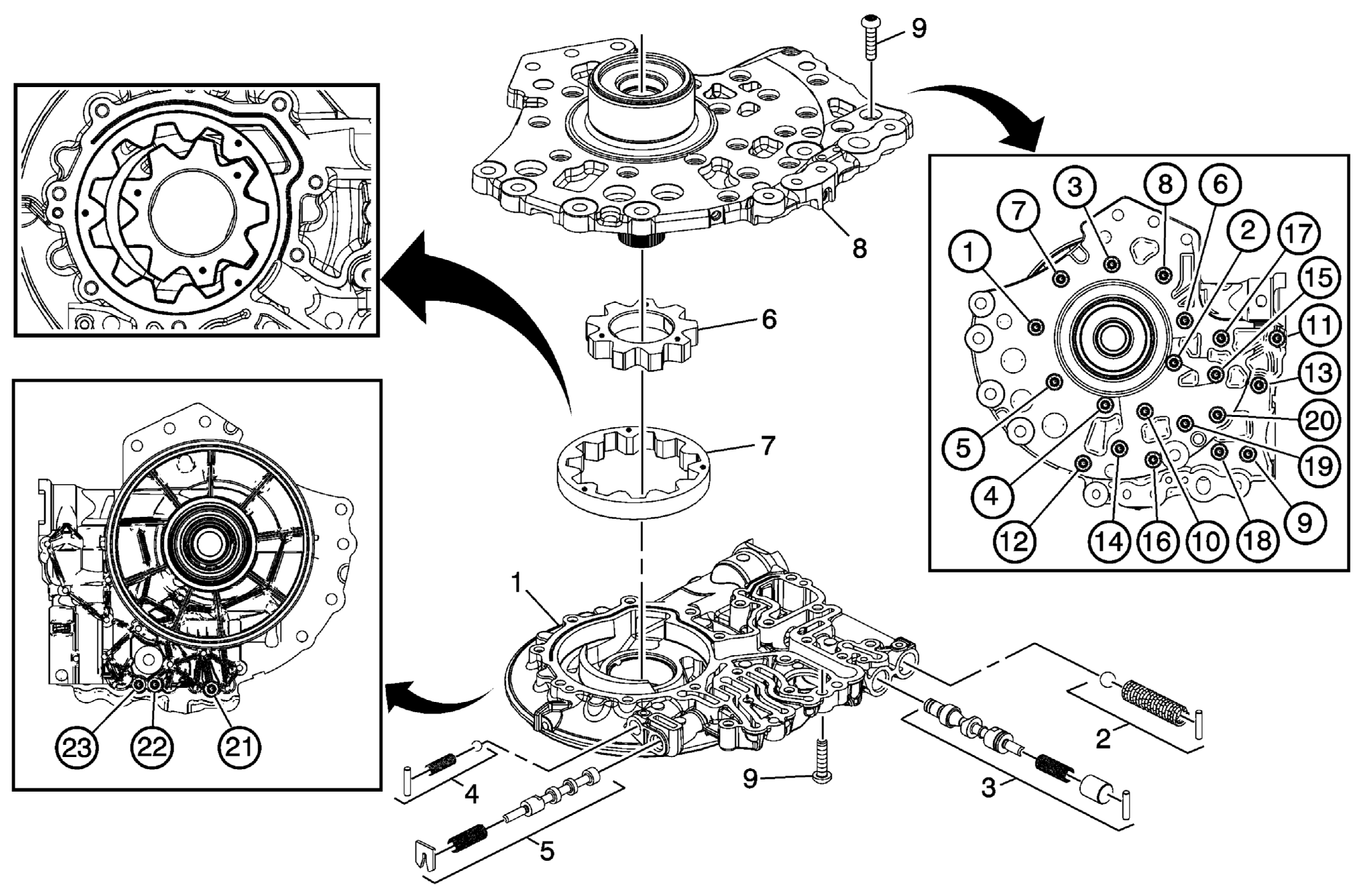

Fig 1: Fluid Pump W/Valve Trains Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	A/Trans Fluid Pump Body
2	Fluid Pump Blow Off Ball Valve Train
3	Pressure Regulator Valve Train
4	TCC Blow Off Ball Valve Train
5	TCC Control Valve Train
6	Fluid Pump Drive Gear NOTE: Align ID feature dots with the driven gear as shown above. The chamfer on the drive gear teeth faces the pump body.
7	Fluid Pump Driven Gear NOTE: Align ID feature dots with the drive gear as shown above, some models. The chamfer on the driven gear O.D. faces the pump body.
8	Fluid Pump Cover
9	Fluid Pump Cover Bolts M6x25 (Qty:23) CAUTION: Refer to Fastener Caution . Tighten 12 N.m (106 lb in)
