Torque Converter Removal
WARNING: This page is about a different variant/trim than selected.

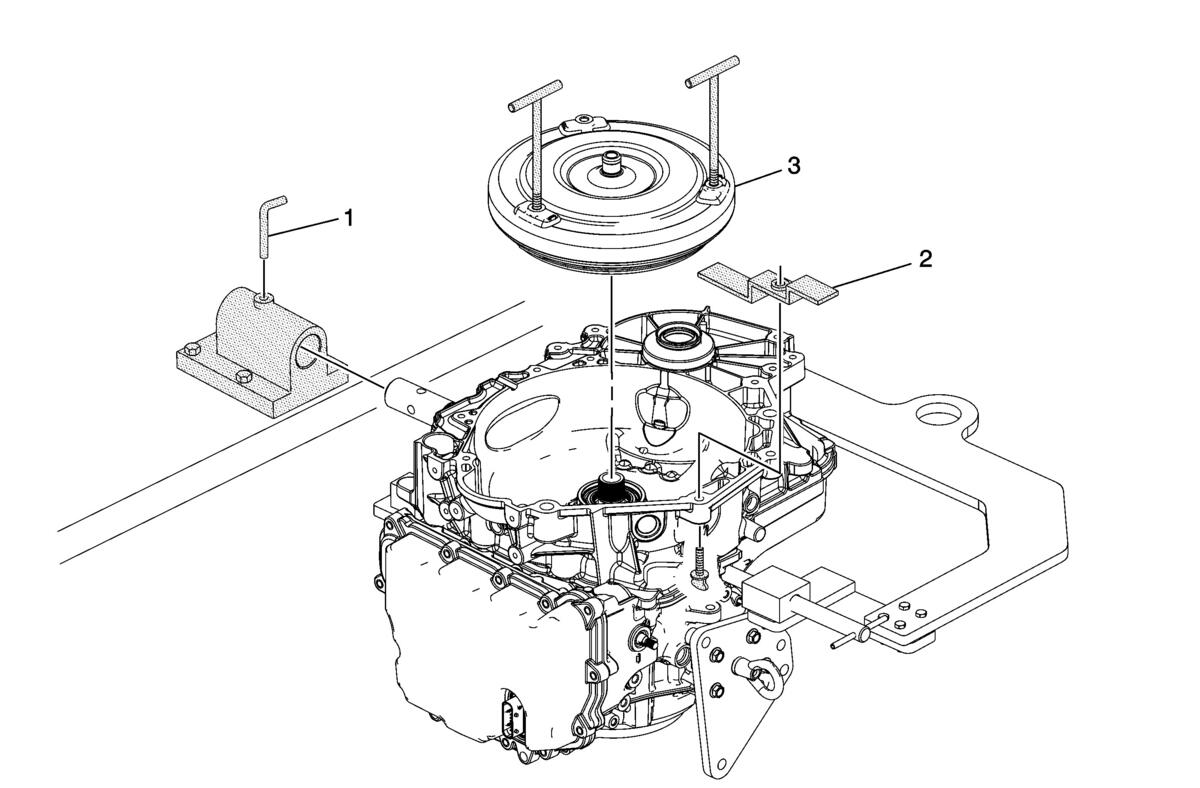

| Callout | Component Name |
|---|---|
| 1 | Lock Pin
WARNING:
Lock pin must be secured into the bench fixture to hold the transmission and prevent bodily injury.
NOTE:
Ensure the DT3289-20 holding fixture is mounted to a bench that is properly supported and will support the weight of the transmission assembly without tipping. DT-39890 holding fixture adapter and an engine stand can be used as an alternative method for supporting the transmission assembly during repairs. Special Tools
For equivalent regional tools, refer to Special Tools . |
| 2 | DT21366 Torque Converter Holding Strap |
| 3 | Torque Converter Assembly
CAUTION:
Only install the lift assist handles until it stops. Do not tighten. Over tightening the lift assist handles can cause damage to the torque converter.
NOTE:
Failure to raise the torque converter straight up could damage the torque converter clutch lip seal inside the torque converter clutch assembly. Special Tool DT46409 Torque Converter Lifting Handles For equivalent regional tools, refer to Special Tools . |
