Torque Converter Installation
WARNING: This page is about a different variant/trim than selected.

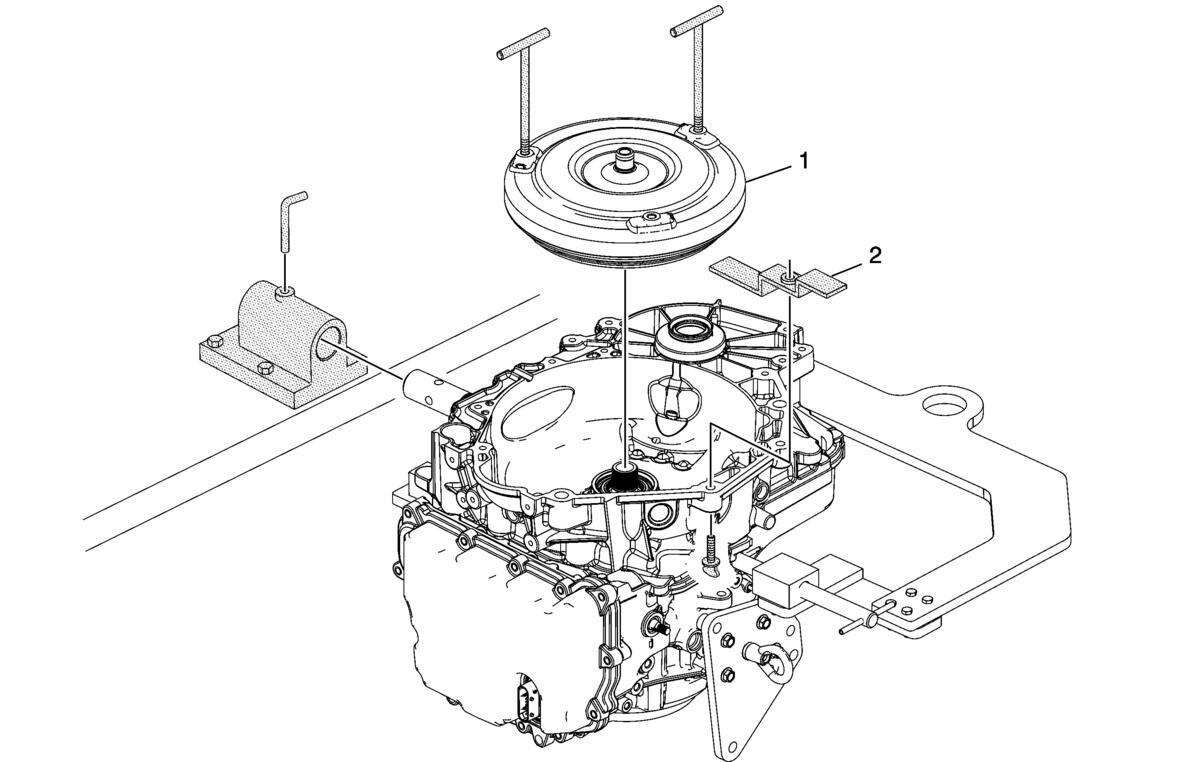

| Callout | Component Name |
|---|---|
| 1 | Torque Converter Assembly
NOTE:
Failure to lower the torque converter straight down could damage the torque converter clutch lip seal inside the torque converter clutch assembly. Special Tool DT-46409 Torque Converter Lifting Handles For equivalent regional tools, refer to Special Tools . |
| 2 | DT-21366
Converter Holding Strap
WARNING:
The torque converter must be held to the torque converter housing by a retaining device such as shipping brackets. Without the retaining device, the torque converter may slide forward, disengaging the oil pump, or may fall completely out of the transmission causing personal injury and/or property damage. |
