Torque Converter Fluid Seal Replacement

WARNING: This page is about a different variant/trim than selected.

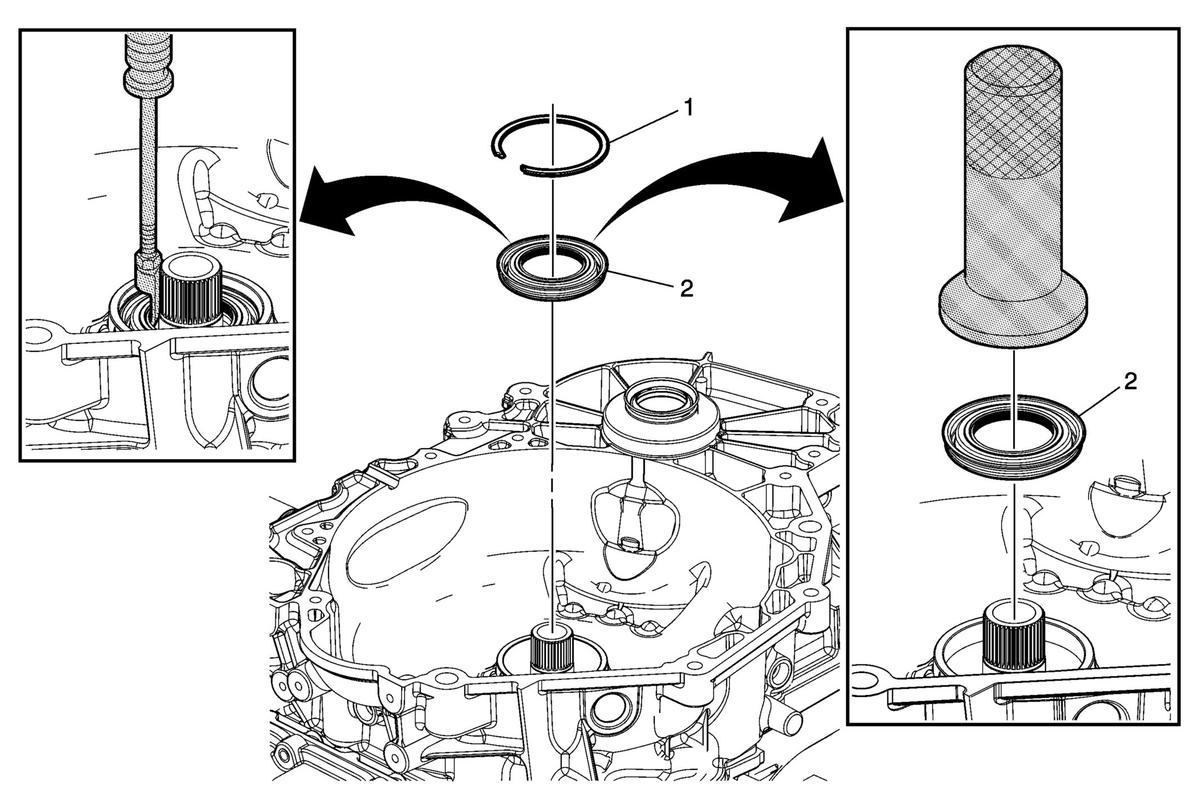

Fig 1: Torque Converter Fluid Seal

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Torque Converter Fluid Seal Retainer
2	Torque Converter Fluid Seal Special Tools DT-47791B Seal Installer DT-6125B Slide Hammer EN-23129 Universal Seal Remover For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Torque Converter Fluid Seal Retainer

Torque Converter Fluid Seal

Special Tools

For equivalent regional tools, refer to Special Tools .
