Manual Shift Shaft Seal Removal
WARNING: This page is about a different variant/trim than selected.

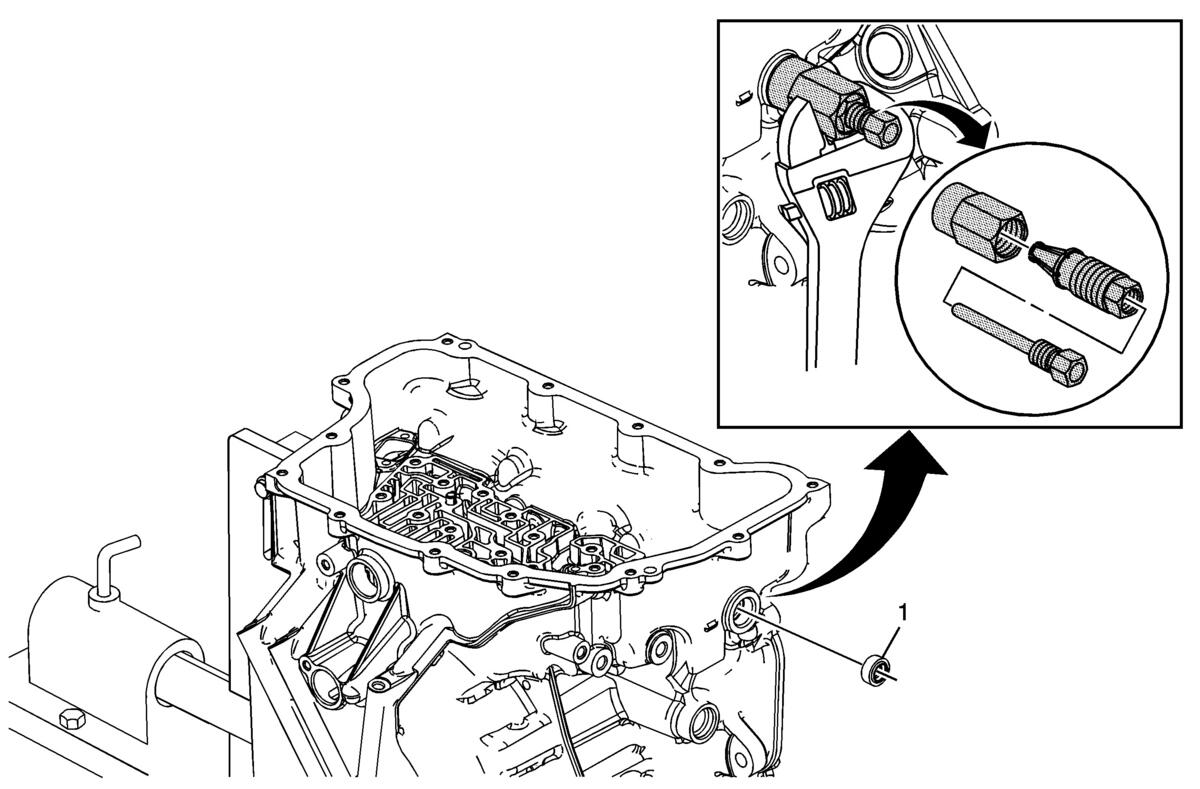

| Callout | Component Name |
|---|---|
| 1 | Manual Shift Shaft Seal
NOTE:
Use the DT-45201 seal remover to remove the seal to prevent damage to the case surface. Special Tools DT-45201 Seal Remover For equivalent regional tools, refer to Special Tools . |
