Lift Plate and Holding Fixture Removal

WARNING: This page is about a different variant/trim than selected.

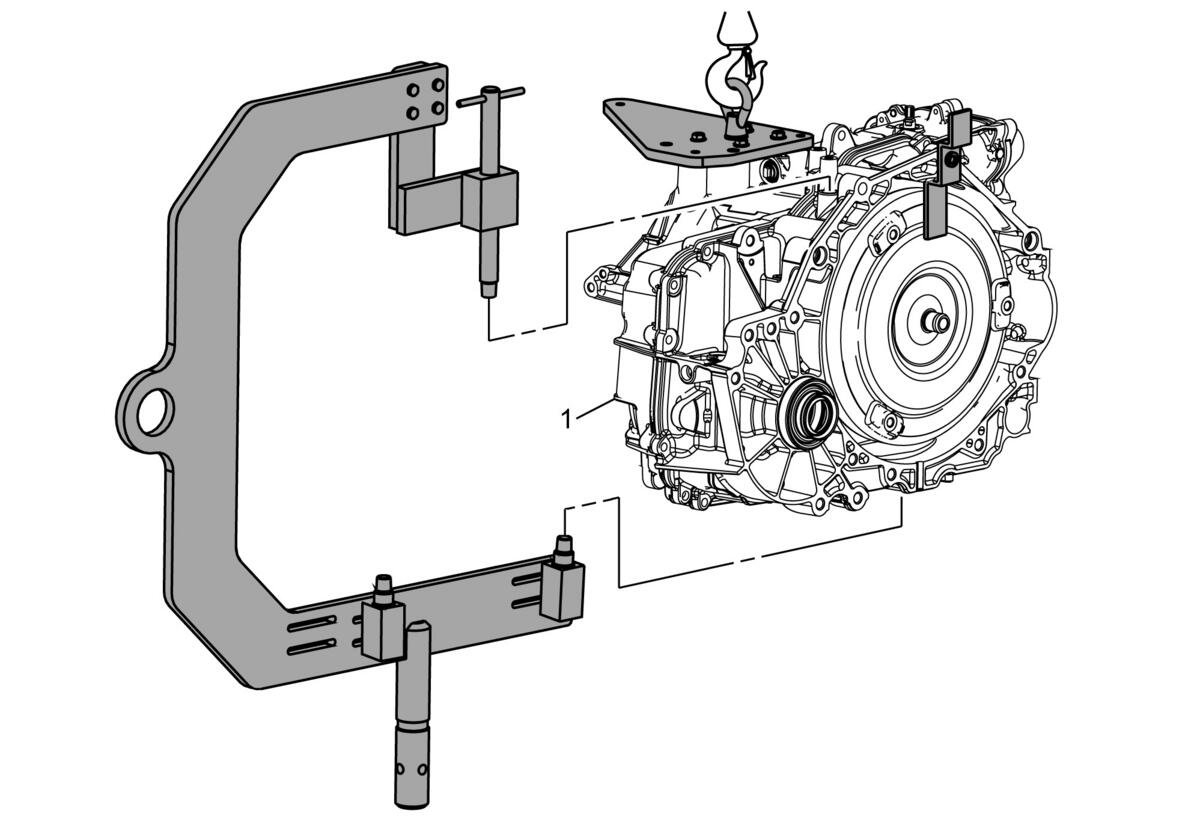

Fig 1: Identifying Lift Plate & Holding Fixture

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	DT-46625 Transmission Holding Fixture For equivalent regional tools, refer to Special Tools . NOTE: Raise the transmission in order to remove the holding fixture.
2	DT-47811-S1 Transmission Lift Plate For equivalent regional tools, refer to Special Tools . NOTE: Lower the transmission assembly onto the transmission jack in order to remove the lift plate.
