Lift Plate and Holding Fixture Installation

WARNING: This page is about a different variant/trim than selected.

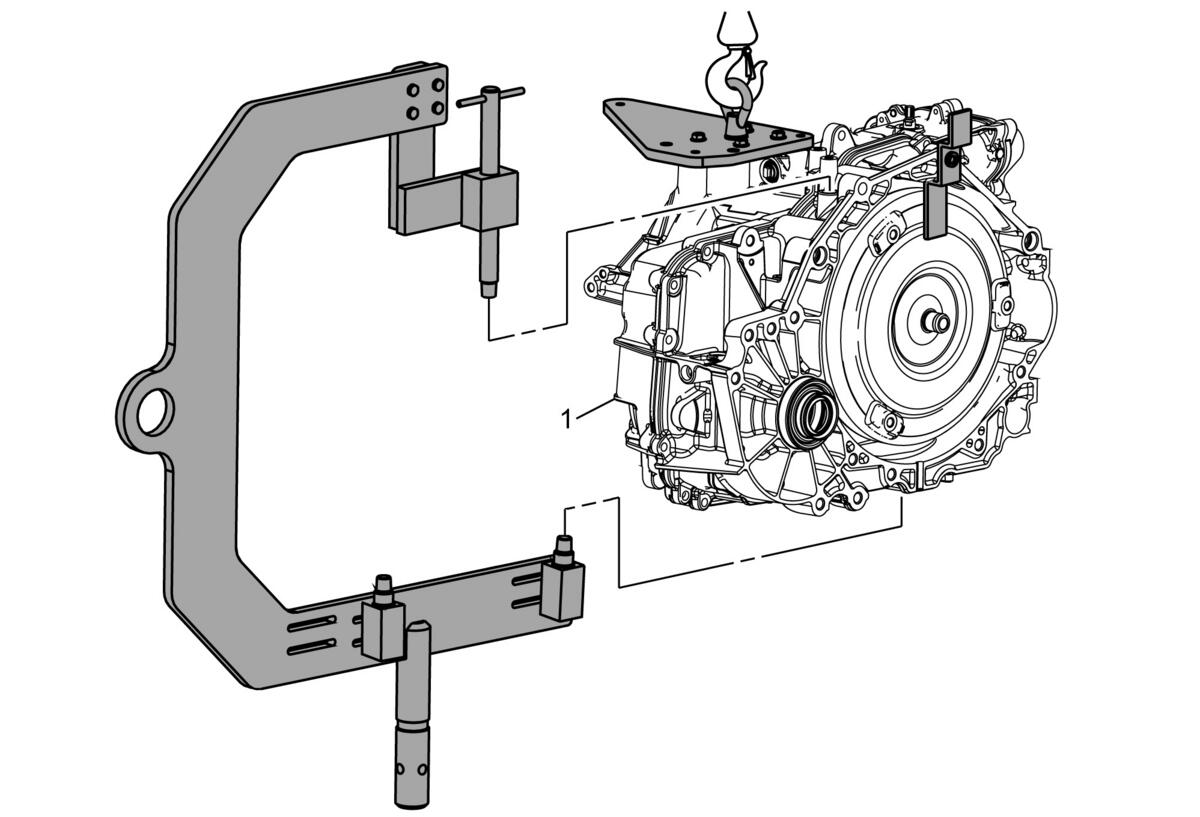

Fig 1: Identifying Lift Plate & Holding Fixture

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	DT47811A Transmission Lift Plate WARNING: Handle with care, the transmission assembly weighs over 83 Kg (183 lbs). Bodily injury could occur if not handled properly. CAUTION: Refer to Fastener Caution . Procedure Tighten bolts and nut. Tighten 12 N.m (106 lb in) Special Tools DT47811A Transmission Lift Plate For equivalent regional tools, refer to Special Tools .
2	DT46625 Transmission Holding Fixture Procedure Raise the transmission with an overhead hoist. Adjust mounting block on fixture to match bosses on case, then tighten bolts. Tighten 13 N.m (10 lb ft) Special Tools DT4662510 Holding Fixture Adapter For equivalent regional tools, refer to Special Tools .

Callout

Component Name

DT47811A Transmission Lift Plate

WARNING:

Handle with care, the transmission assembly weighs over 83 Kg (183 lbs). Bodily injury could occur if not handled properly.

CAUTION:

Refer to Fastener Caution .

Procedure
Tighten bolts and nut.
Tighten
12 N.m (106 lb in)
Special Tools
DT47811A Transmission Lift Plate
For equivalent regional tools, refer to Special Tools .

DT46625 Transmission Holding Fixture

Procedure

Raise the transmission with an overhead hoist.
Adjust mounting block on fixture to match bosses on case, then tighten bolts.

Tighten
13 N.m (10 lb ft)
Special Tools
DT4662510 Holding Fixture Adapter
For equivalent regional tools, refer to Special Tools .
