Input, Reaction, and Output Carrier Disassemble

WARNING: This page is about a different variant/trim than selected.

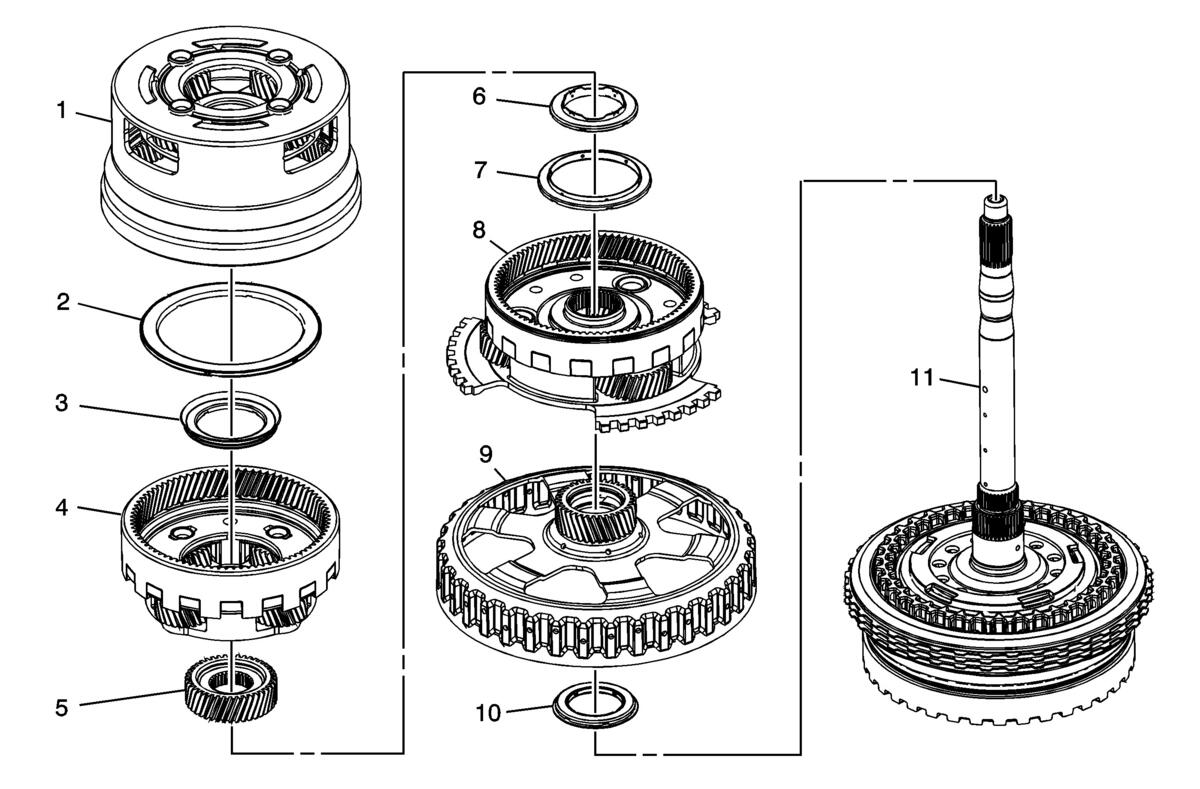

Fig 1: Disassembled View Of Input, Reaction & Output Carrier

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Output Carrier Assembly NOTE: The 6T30 and 6T40 have 4 pinions. The 6T45 and 6T50 have 5 pinions.
2	Output Carrier Thrust Bearing Assembly
3	Input Sun Gear Thrust Bearing Assembly
4	Input Carrier Assembly NOTE: The 6T30 and 6T40 have 4 pinions. The 6T45 and 6T50 have 5 pinions.
5	Input Sun Gear
6	Input Sun Gear Thrust Bearing Assembly
7	Input Carrier Thrust Bearing Assembly
8	Reaction Carrier Assembly NOTE: Starting in 2012, all 6T30/40/45/50 models have 3 pinion reaction carriers. The 3 pinion reaction carriers are back serviceable for all models. Original Configuration: The 6T30 and 6T40 had 3 pinions. The 6T45 and 6T50 had 4 pinions.
9	Reaction Carrier Sun Gear Assembly
10	Reaction Carrier Sun Gear Thrust Bearing NOTE: The sun gear thrust bearing may be stuck to the sun gear.
11	3-5 Reverse and 4-5-6 Clutch Housing Assembly
