Input, Reaction, and Output Carrier Assemble (Gen 2)

WARNING: This page is about a different variant/trim than selected.

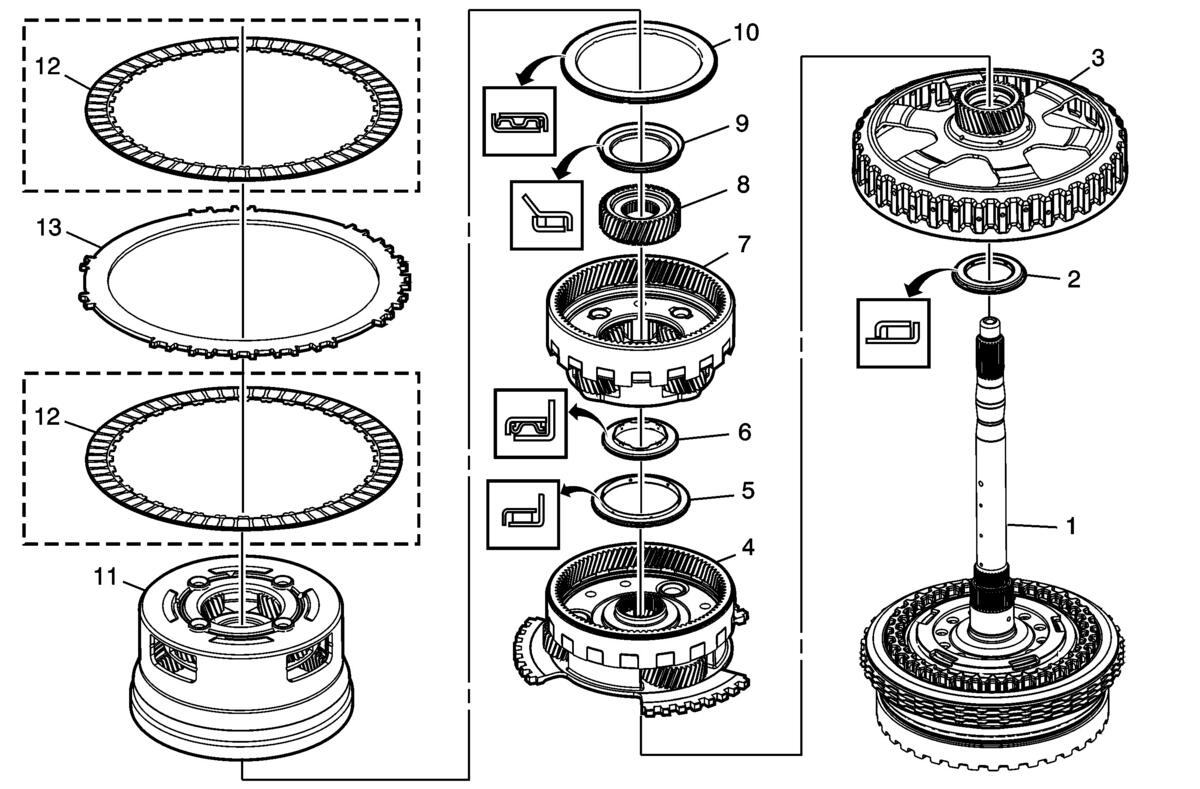

Fig 1: Input, Reaction, and Output Carrier Assemble (Gen 2)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	3-5 Reverse and 4-5-6 Clutch Housing Assembly
2	Reaction Carrier Sun Gear Thrust Bearing
3	Reaction Carrier Sun Gear Assembly
4	Reaction Carrier Assembly NOTE: Starting in 2012, all 6T30/40/45/50 models have 3 pinion reaction carriers. The 3 pinion reaction carriers are back serviceable for all models. Original Configuration: The 6T30 and 6T40 had 3 pinions. The 6T45 and 6T50 had 4 pinions.
5	Input Carrier Thrust Bearing Assembly
6	Input Sun Gear Thrust Bearing Assembly
7	Input Carrier Assembly NOTE: The 6T30 and 6T40 have 4 pinions. The 6T45 and 6T50 have 5 pinions.
8	Input Sun Gear
9	Input Sun Gear Thrust Bearing Assembly
10	Output Carrier Thrust Bearing Assembly
11	Output Carrier Assembly NOTE: The 6T30 and 6T40 have 4 pinions. The 6T45 and 6T50 have 5 pinions.
12	2-6 Clutch Plate Assembly (Qty:2)-Model Dependent NOTE: Begin with the clutch plate assembly and alternate with the clutch plate. The number of grooves in the clutch plate friction material varies depending on model.
13	2-6 Clutch Plate (Qty:1) NOTE: Only install one 2-6 Clutch Plate at this time. The remaining clutch plate is installed into the case.
