Input and Output Speed Sensor Removal

WARNING: This page is about a different variant/trim than selected.

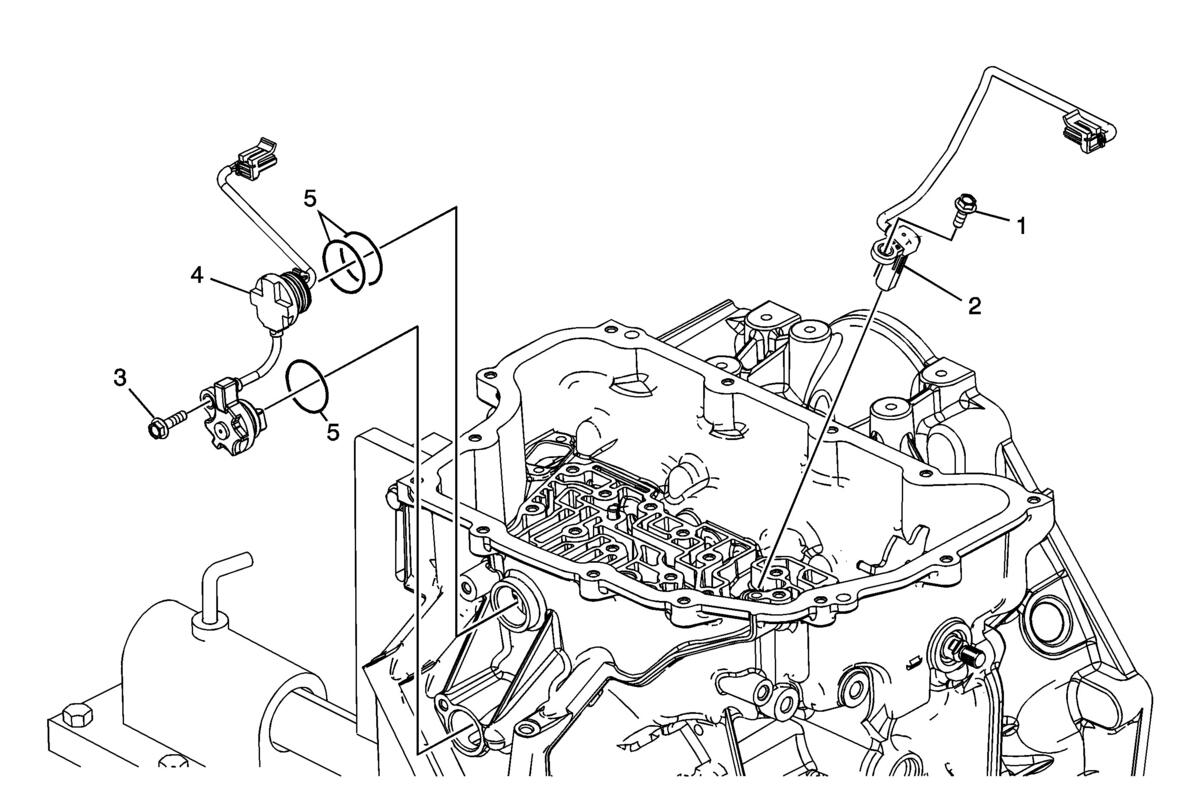

Fig 1: View Of Input & Output Speed Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	A/Trans Output Speed Sensor Bolt M6x18 (Qty:1)
2	A/Trans Output Speed Sensor Assembly
3	Input Speed Sensor Bolt M6x23 (Qty:1)
4	Input Speed Sensor Assembly NOTE: Compress the locking tabs on the plug to release it from the case and to avoid damaging the retainers.
5	Input Speed Sensor Assembly Seals (Qty:3) NOTE: Discard the seals. They are not reusable.
