Input and Output Speed Sensor Installation
WARNING: This page is about a different variant/trim than selected.

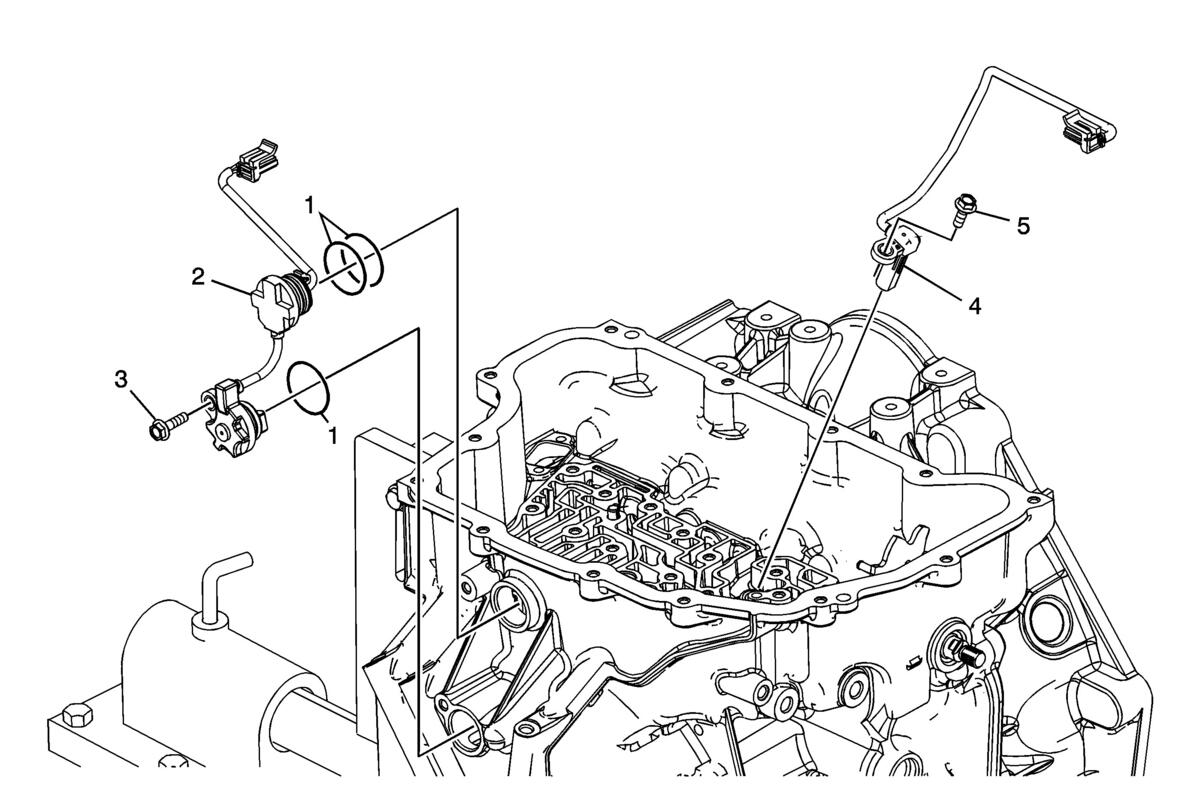

| Callout | Component Name |
|---|---|
| 1 | Input Speed Sensor Assembly Seals |
| 2 | Input Speed Sensor Assembly |
| 3 | Input Speed Sensor Bolt M6x23 (Qty:1)
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 4 | A/Trans Output Speed Sensor Assembly |
| 5 | A/Trans Output Speed Sensor Bolt M6x18 (Qty:1) Tighten 9 N.m (80 lb in) |
