Front Differential Carrier Installation (6T40)
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY

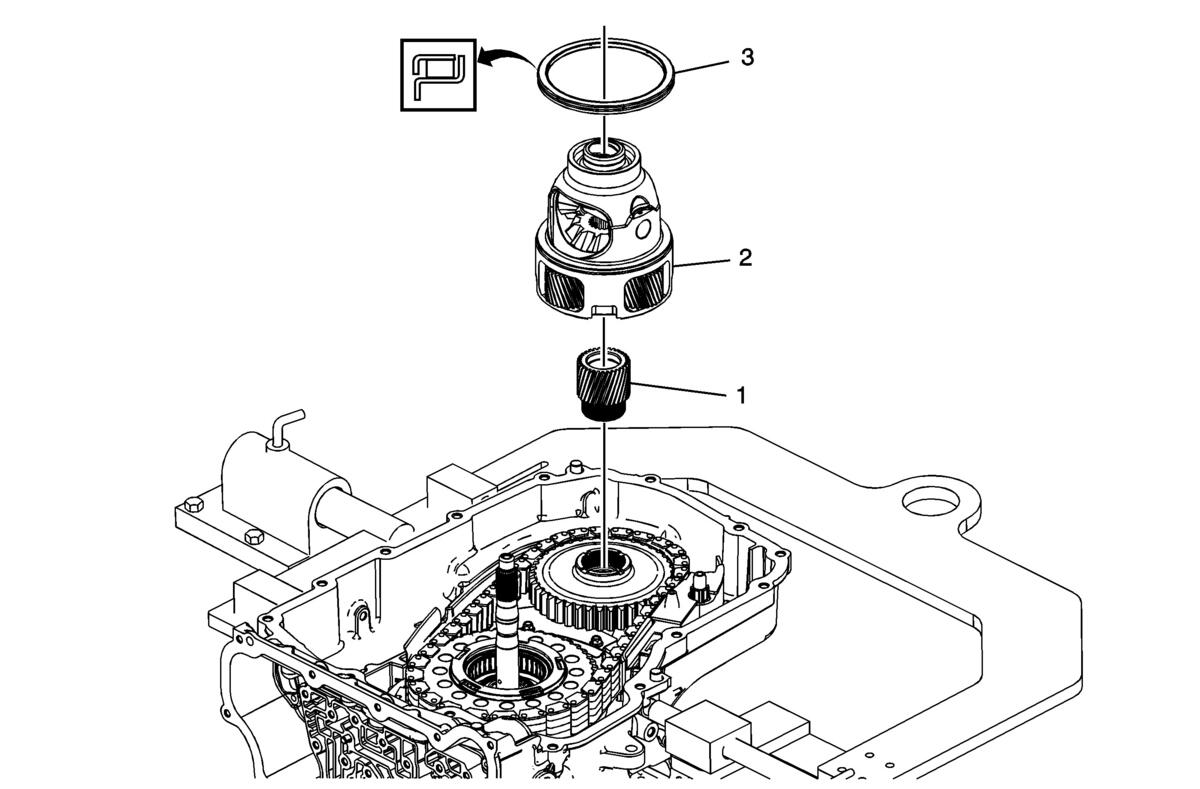

| Callout |
Component Name |
| 1 |
Final Drive Sun Gear |
| 2 |
Differential Carrier Assembly |
| 3 |
Front Differential Carrier Bearing Assembly |
