Fluid Pump Selective Measurement

WARNING: This page is about a different variant/trim than selected.

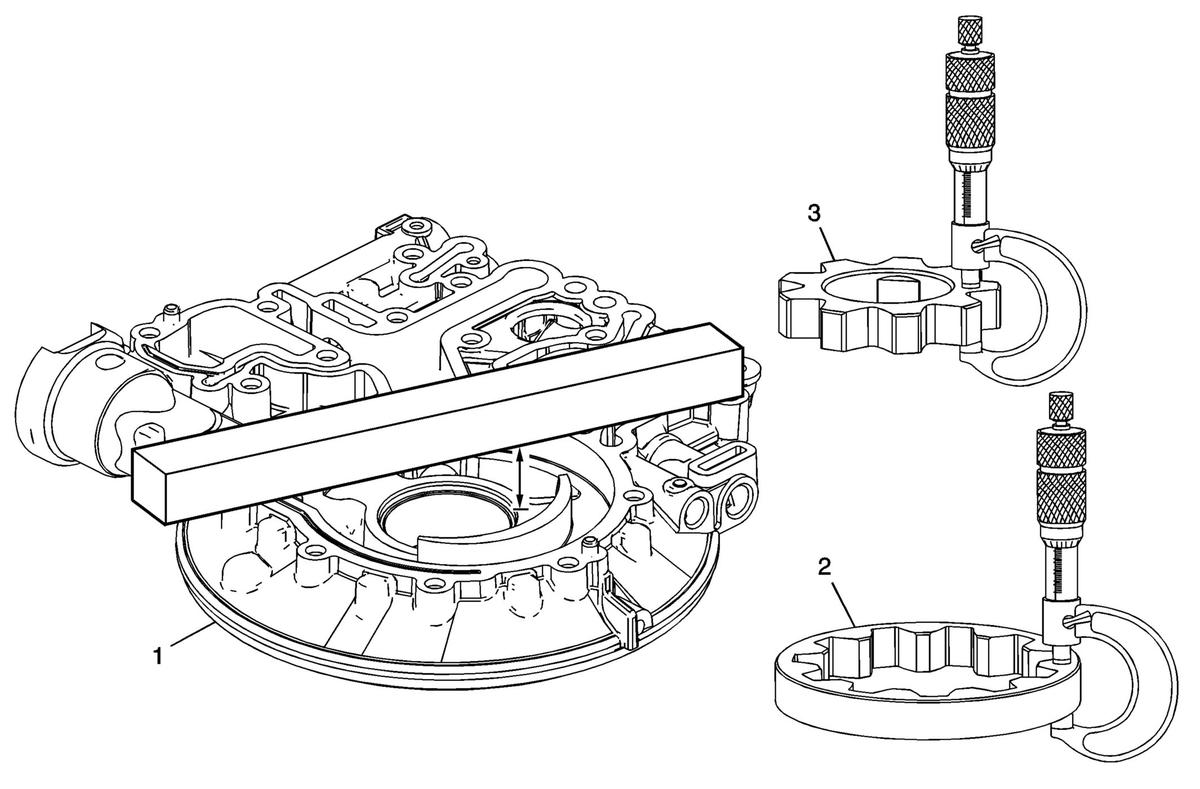

Fig 1: Measuring Fluid Pump Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	A/Trans Fluid Pump Body NOTE: Measure the distance from the bottom of the gauge bar to the bottom of the pump rotor cavity. Refer to Fluid Pump Selective Specifications . Special Tool GE34673 Flat Gauge Bar or equivalent
2	A/Trans Fluid Pump Driven Gear NOTE: Refer to Fluid Pump Selective Specifications to select the correct gear.
3	A/Trans Fluid Pump Drive Gear NOTE: Refer to Fluid Pump Selective Specifications to select the correct gear.
