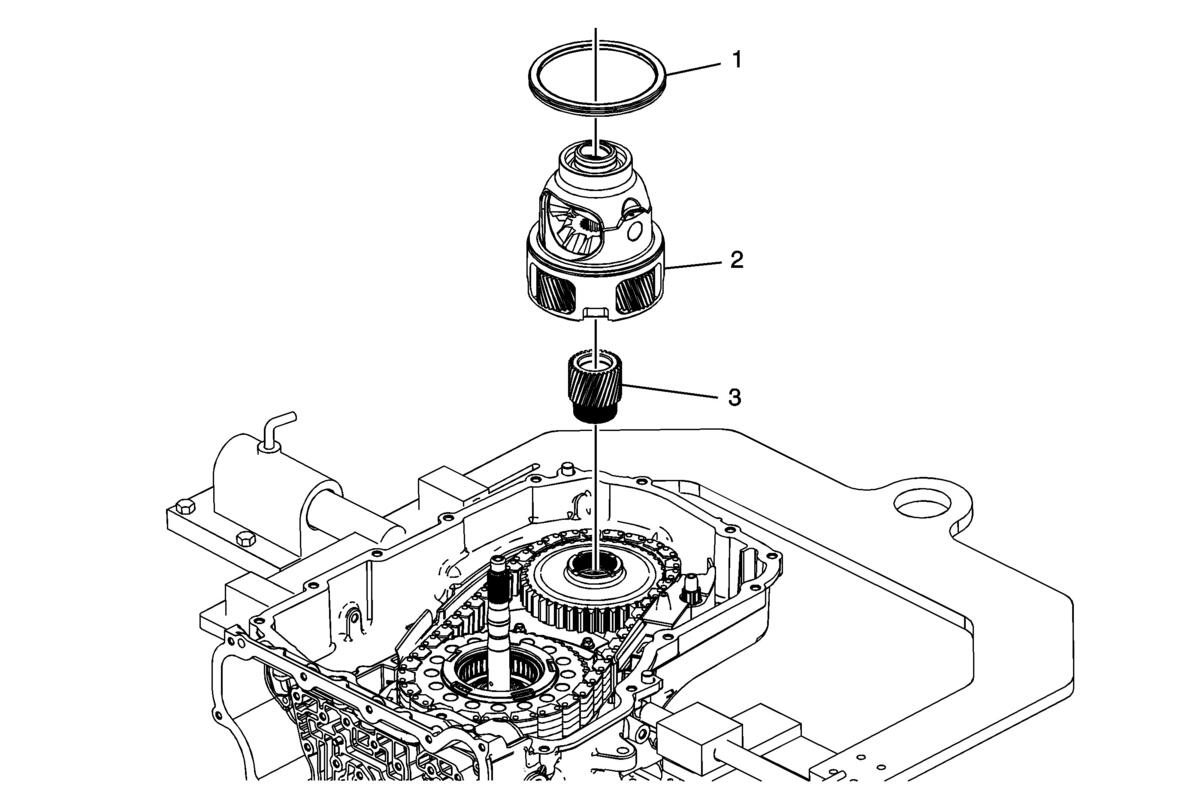

Differential Carrier Removal (6T40)
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
| 1 |
Front Differential Carrier Bearing Assembly |
| 2 |
Differential Carrier Assembly |
| 3 |
Final Drive Sun Gear |
