Control Valve Body Cover Installation

WARNING: This page is about a different variant/trim than selected.

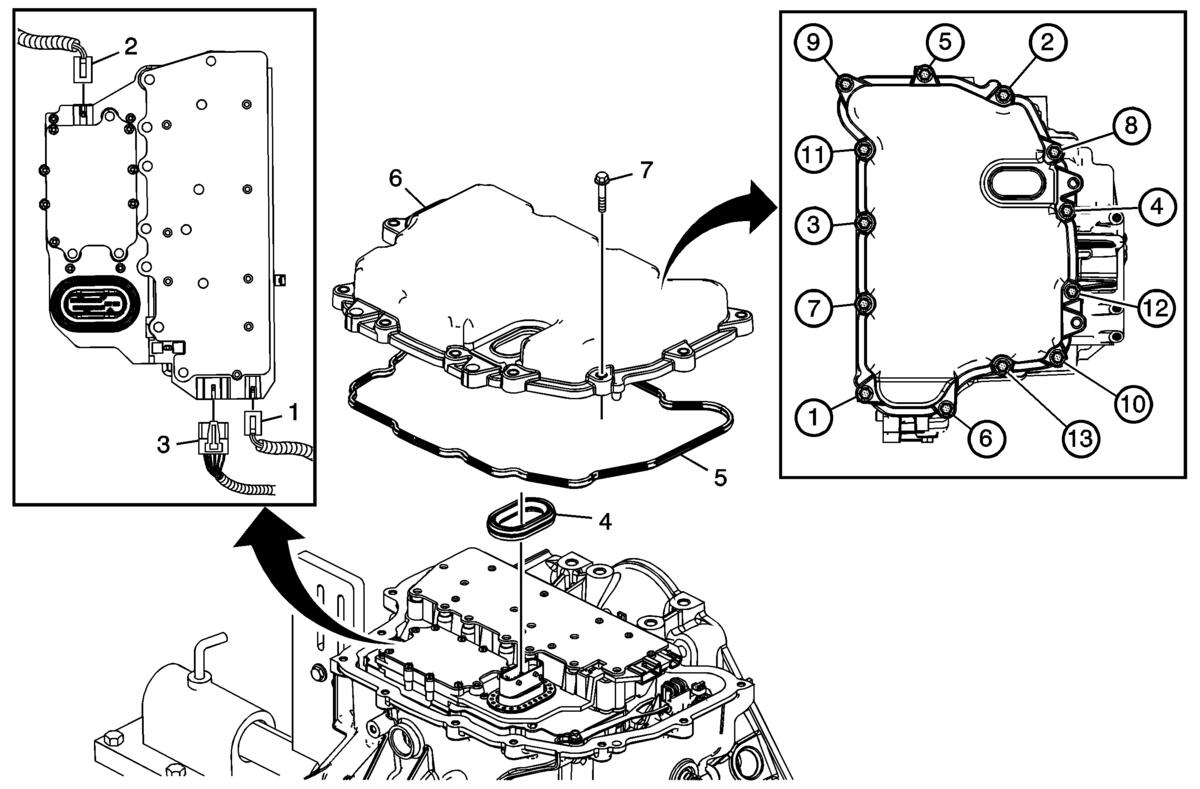

Fig 1: Identifying Control Valve Body Cover Bolt Tightening Sequence

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Input Speed Sensor Connector
2	Output Speed Sensor Connector
3	Shift Position Switch Connector
4	Control Valve Body Cover Wiring Connector Hole Seal NOTE: Do not re-use the valve body cover wiring connector hole seal.
5	Control Valve Body Cover Gasket NOTE: Do not re-use the valve body cover gasket.
6	Control Valve Body Cover
7	Control Valve Body Cover Bolts M6x30 (Qty:13) CAUTION: Refer to Fastener Caution . Tighten 12 N.m (106 lb in)
