Control Valve Body Cover Removal
WARNING: This page is about a different variant/trim than selected.
Control Valve Body Cover Removal

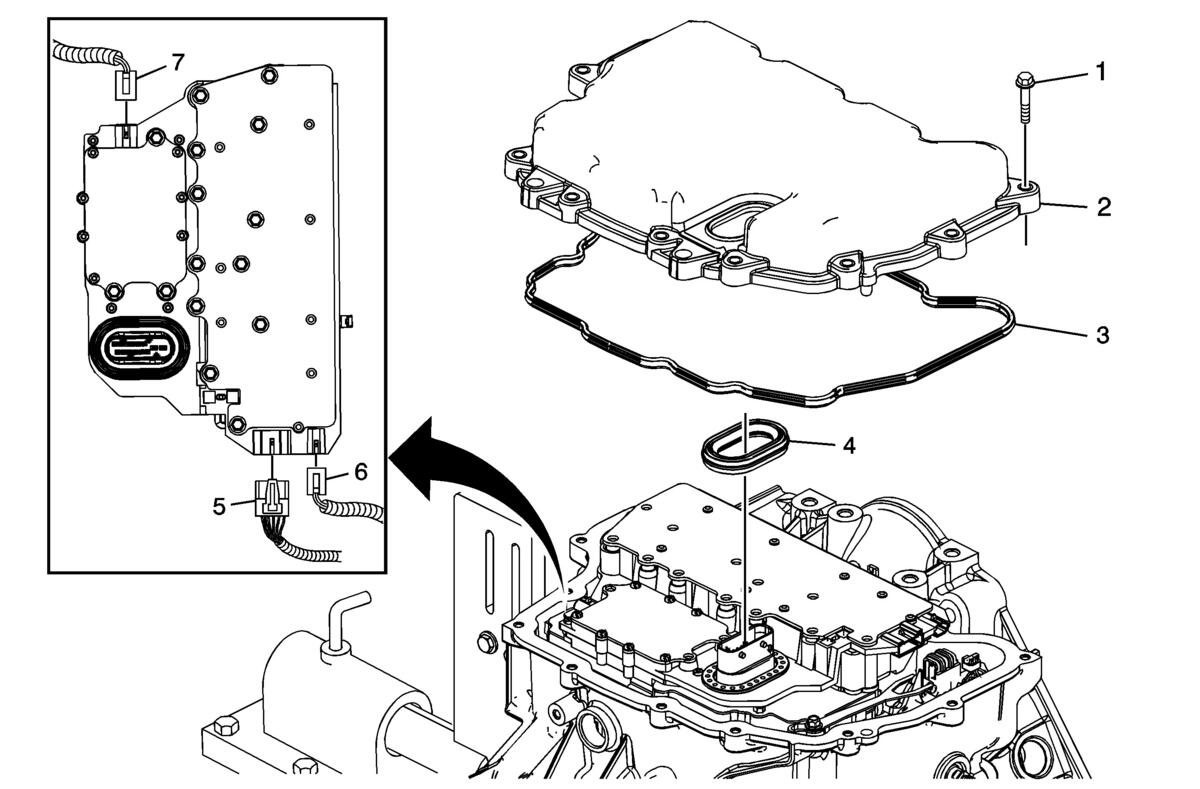

| Callout | Component Name |
|---|---|
| 1 | Control Valve Body Cover Bolts M6x30 (Qty:13) |
| 2 | Control Valve Body Cover |
| 3 | Control Valve Body Gasket
NOTE:
Discard the seal. It is not reusable. |
| 4 | Control Valve Body Cover Wiring Connector Hole Seal
CAUTION:
Support the control solenoid valve assembly around the connector when removing the seal. Excessive pulling force can damage the internal electrical connections.
NOTE:
Discard the seal. It is not reusable. |
| 5 | Shift Position Switch Connector |
| 6 | Output Speed Sensor Connector |
| 7 | Input Speed Sensor Connector |
