Control Solenoid (With Body and TCM) Valve Assembly Removal

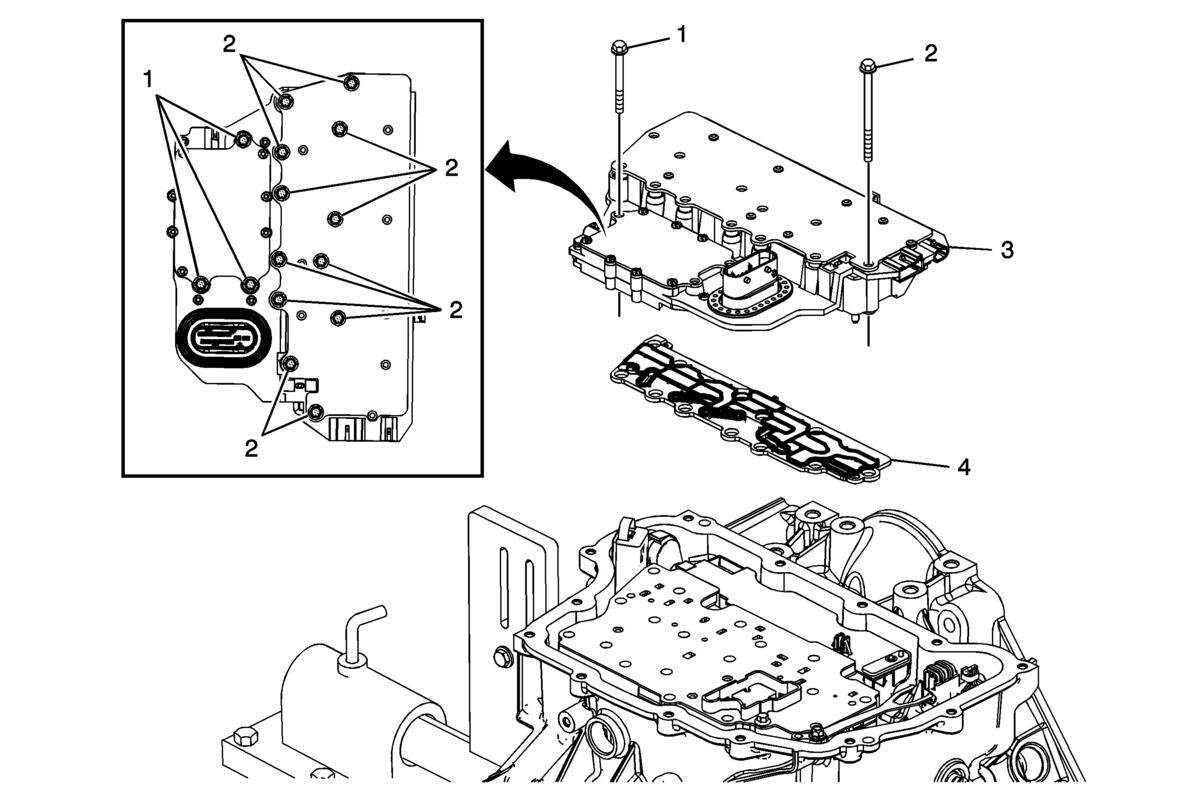

| Callout | Component Name |
|---|---|
| 1 | Control Valve Body M5x40.5 (Qty:3) |
| 2 | Control Valve Body Bolt M6x30 (Qty:12) |
| 3 | Control Solenoid (with Body and TCM) Valve Assembly |
| 4 | Control Solenoid Valve Assembly Filter Plate
CAUTION:
Use care when removing or installing the filter plate assembly. A broken or missing retaining tab may not adequately secure the filter plate to the control solenoid valve assembly, resulting in possible damage or contamination.
NOTE:
Discard the filter plate. It is not reusable. |
