Control Valve Body Assembly Disassemble (Gen 2)
WARNING: This page is about a different variant/trim than selected.

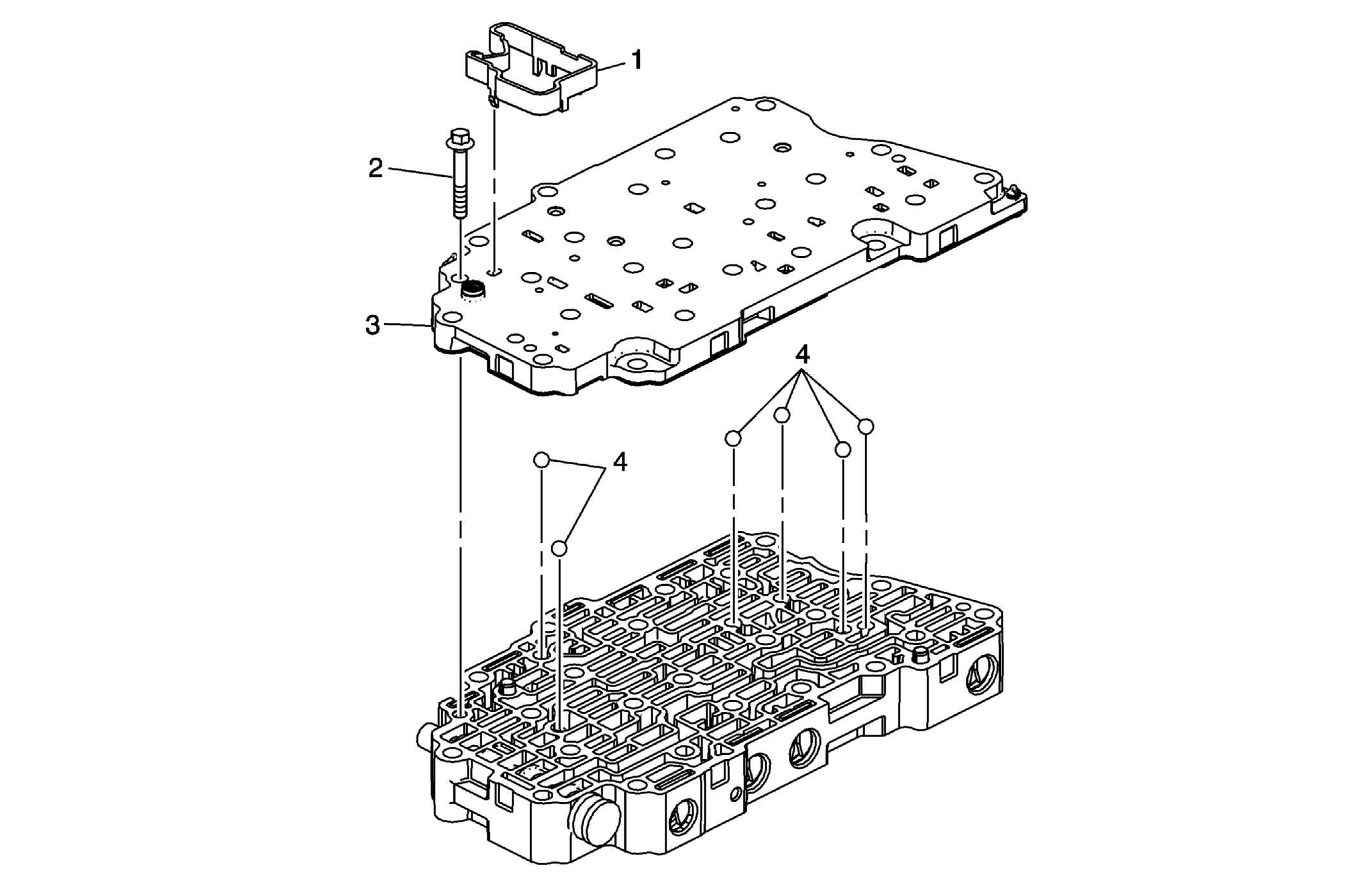

| Callout | Component Name |
|---|---|
| 1 | Control Solenoid Valve Support |
| 2 | Control Valve Body Bolt M5x40.5 (Qty:1) |
| 3 | Valve Channel Plate
NOTE:
Inspect the channel plate bolt pass through holes for damage or brinelling. Any damage will cause incorrect pressure switch operation. Replace as necessary. |
| 4 | Valve Body Ball Check Valves (Qty:6) |
