Control Valve Body Assembly Assemble
WARNING: This page is about a different variant/trim than selected.

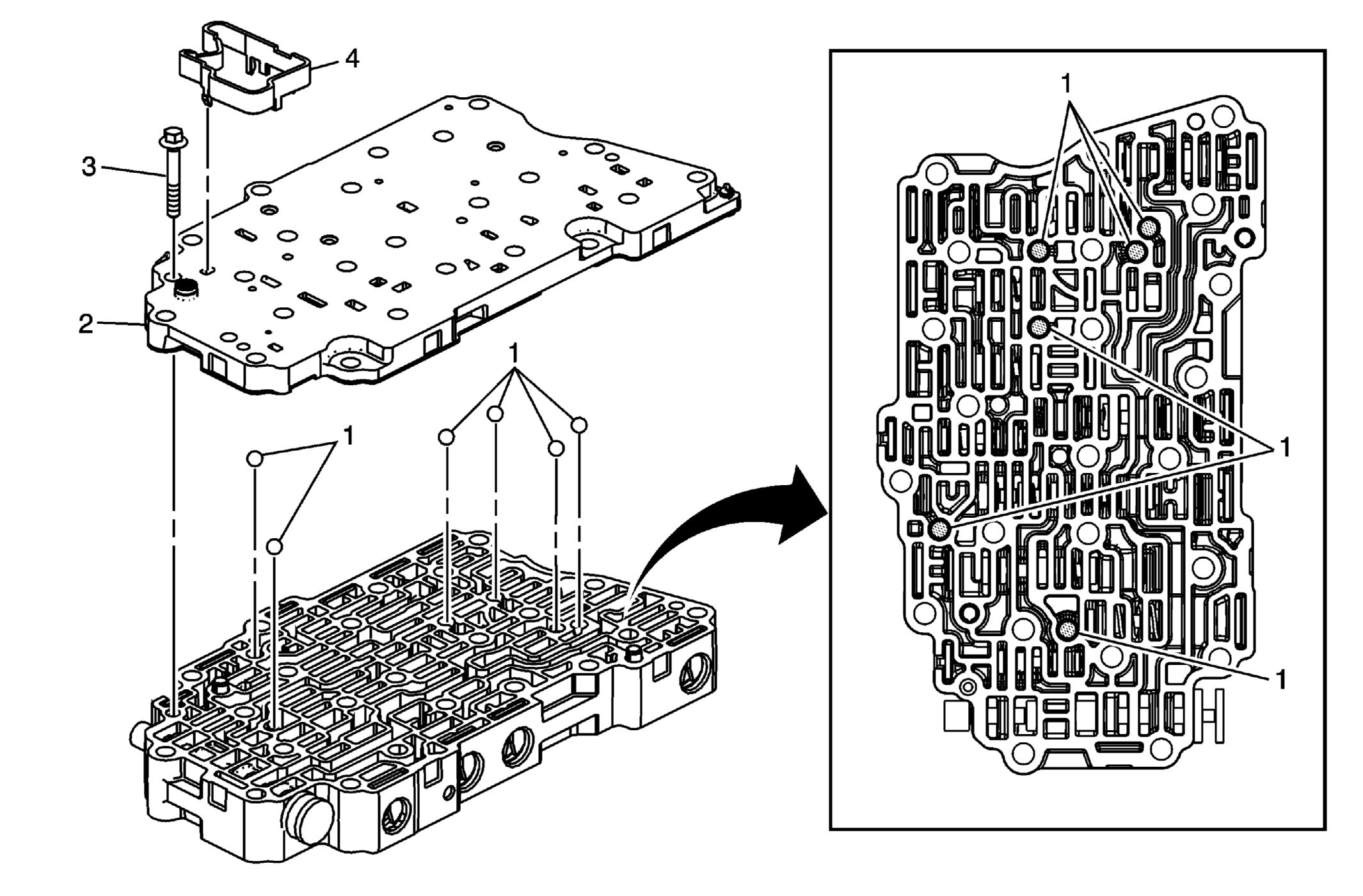

| Callout | Component Name |
|---|---|
| 1 | Valve Body Ball Check Valve (Qty:6) |
| 2 | Valve Channel Plate |
| 3 | Control Valve Body Bolt M5x40.5 (Qty:1)
CAUTION:
Refer to Fastener Caution . Tighten 7 N.m (62 lb in) |
| 4 | Control Solenoid Valve Support |
