Control Solenoid Valve and Transmission Control Module Assembly Installation
WARNING: This page is about a different variant/trim than selected.

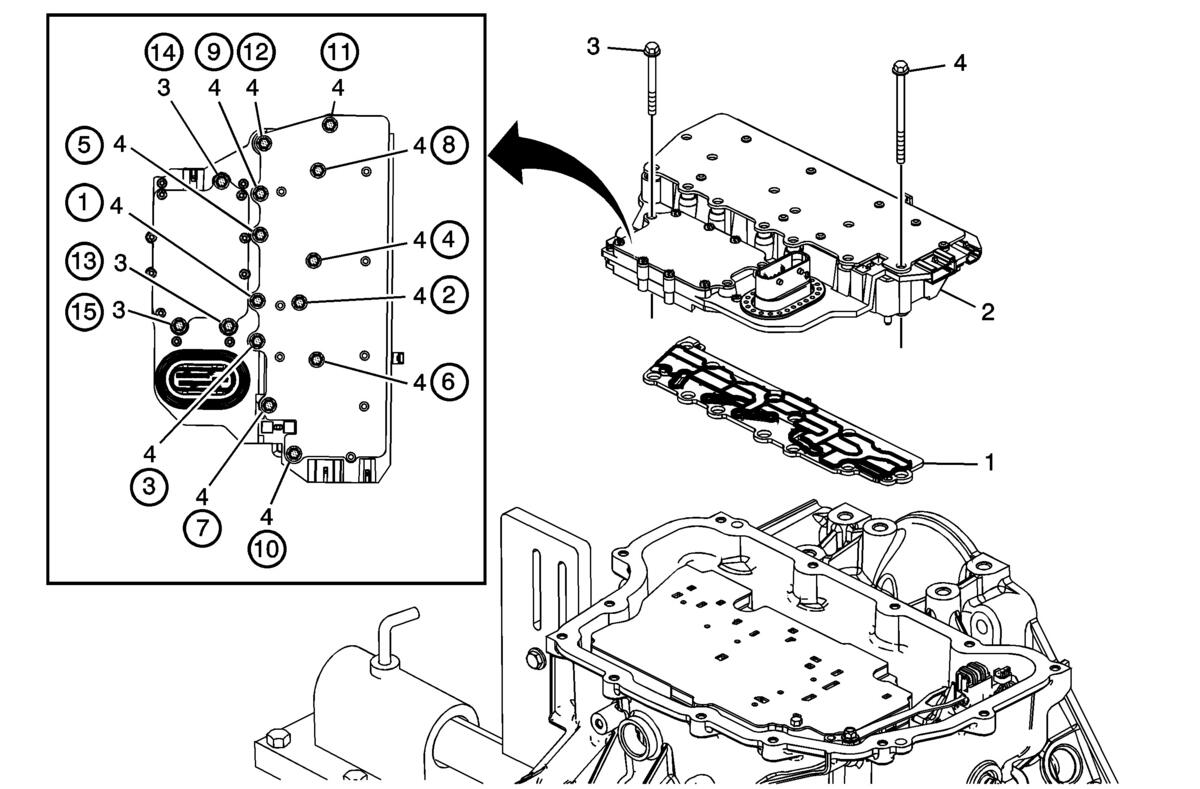

| Callout | Component Name |
|---|---|
| 1 | Control Solenoid Valve Assembly Filter Plate
CAUTION:
Use care when removing or installing the filter plate assembly. A broken or missing retaining tab may not adequately secure the filter plate to the control solenoid valve assembly, resulting in possible damage or contamination.
NOTE:
Install a NEW filter plate to prevent fluid leaks past the fluid seals. |
| 2 | Control Solenoid (w/Body and TCM) Valve Assembly |
| 3 | Control Valve Body Bolt M5x40.5 (Qty:3)
CAUTION:
Refer to Fastener Caution . Tighten 7 N.m (62 lb in) |
| 4 | Control Valve Body Bolt M6x97 (Qty:12) Tighten 10 N.m (89 lb in) |
