Auxiliary Fluid Pump Cleaning and Inspection (Hybrid)
WARNING: This page is about a different variant/trim than selected.

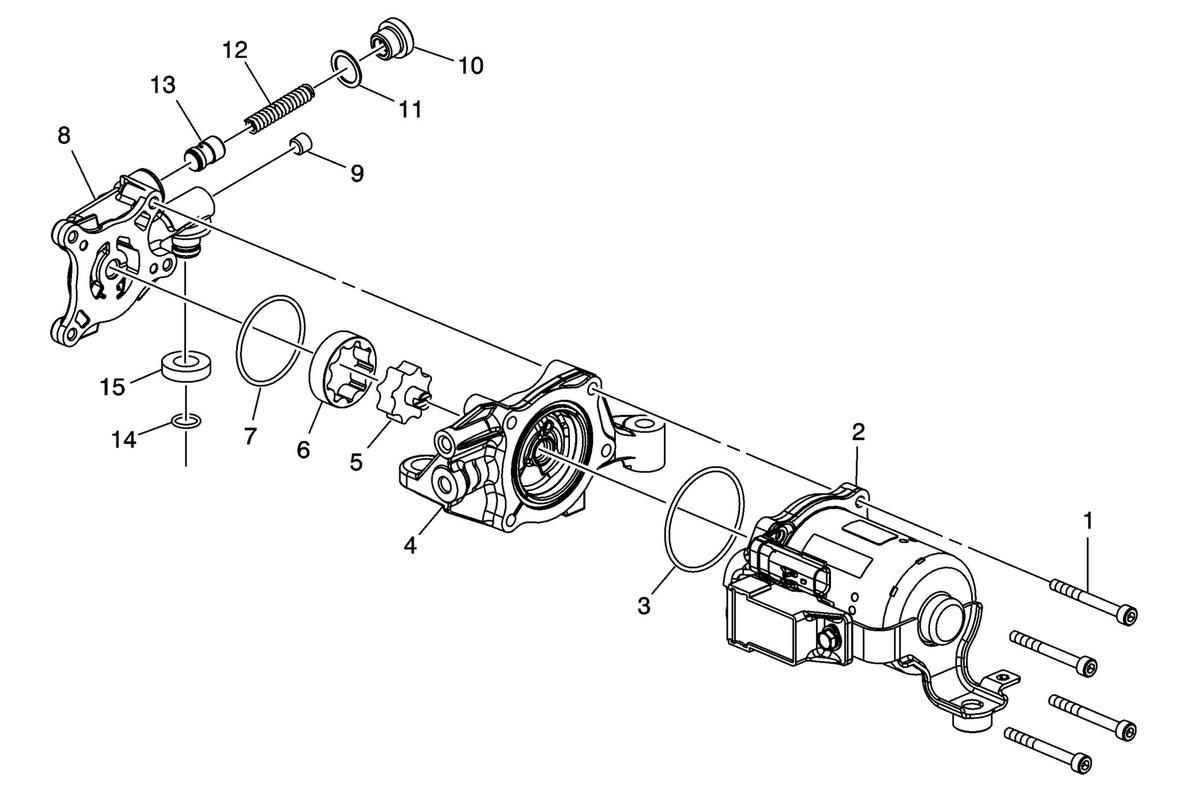

| Callout | Component Name |
|---|---|
| Preliminary Procedure Clean and inspect only the auxiliary fluid pump components shown above. The only serviceable components are listed as serviceable below. |
|
| 1 | A/Trans Auxiliary Fluid Pump (Pump to Motor) Bolt (Qty:4)
CAUTION:
Refer to Fastener Caution . Tighten 10-12 N.m (88-106 lb in) |
| 2 | A/Trans Auxiliary Fluid Pump Motor |
| 3 | A/Trans Auxiliary Fluid Pump Motor Cover Seal (O-ring) serviceable |
| 4 | A/Trans Auxiliary Fluid Pump Body |
| 5 | A/Trans Auxiliary Fluid Pump Inner Rotor |
| 6 | A/Trans Auxiliary Fluid Pump Outer Rotor |
| 7 | A/Trans Auxiliary Fluid Pump Cover Seal serviceable |
| 8 | A/Trans Auxiliary Fluid Pump Cover |
| 9 | A/Trans Auxiliary Fluid Pump Cover Hole Plug |
| 10 | Pressure Regulator Valve Spring Retainer |
| 11 | Pressure Regulator Valve Spring Spacer serviceable |
| 12 | Pressure Regulator Valve Spring |
| 13 | Pressure Regulator Valve |
| 14 | A/Trans Auxiliary Fluid Pump Seal serviceable |
| 15 | A/Trans Auxiliary Fluid Pump Gasket serviceable |
