3-5-Reverse and 4-5-6 Clutch Housing, and Input, Reaction, and Output Carrier Installation

WARNING: This page is about a different variant/trim than selected.

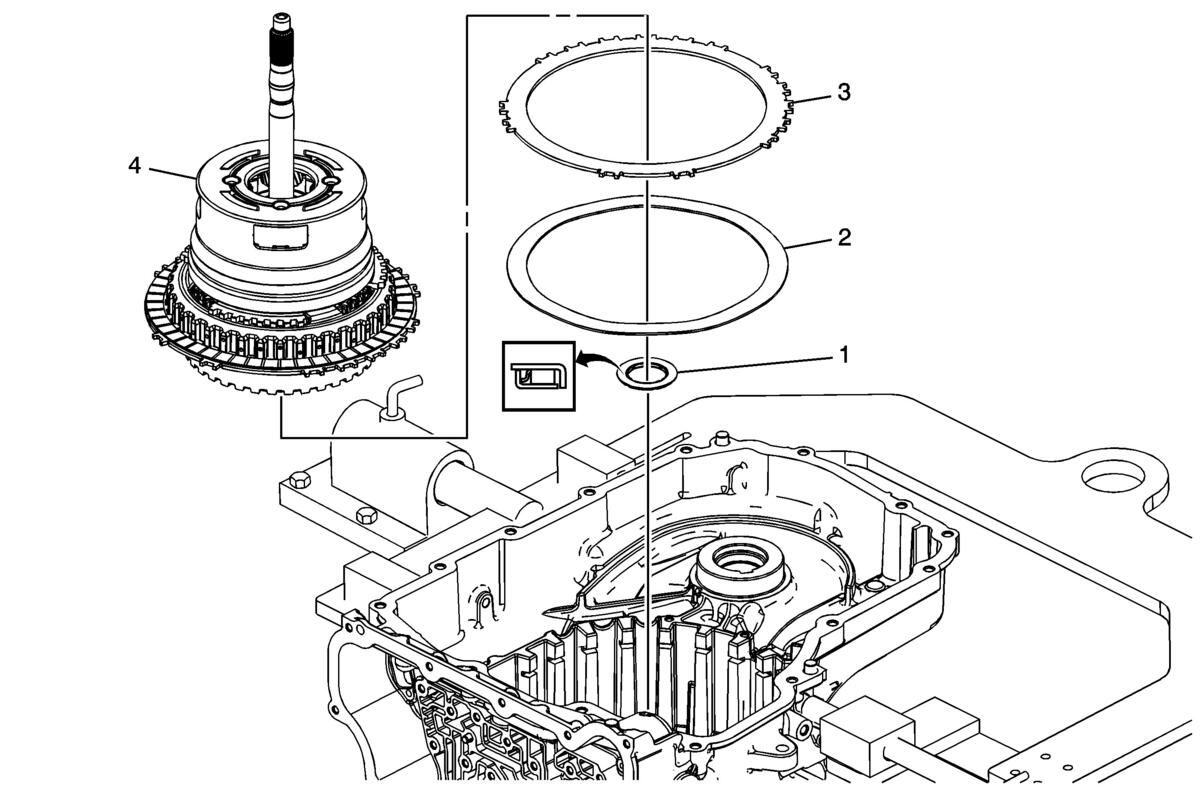

Fig 1: View Of 3-5-Reverse, 4-5-6 Clutch Housing, Input, Reaction & Output Carrier Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	3-5 Reverse and 4-5-6 Clutch Housing Thrust Bearing
2	2-6 Clutch Apply Plate (Waved)
3	2-6 Clutch Plate (Qty:1) NOTE: Only install one 2-6 Clutch Plate. The remaining clutch plate is installed with the gearset assembly. Align the large flat areas with the valve body end of the case and the 2 tabs on the clutch plate that are close to each other with the slots at the bottom right corner of the case.
4	3-5 Reverse and 4-5-6 Clutch Housing Assembly and Gearset NOTE: Align the large flat areas of the 2-6 Clutch Plate with the valve body end of the case and the 2 tabs on the clutch plate that are close to each other with the slots at the bottom right corner of the case.
