Reluctor Wheel and Piston Removal
WARNING: This page is about a different variant/trim than selected.
Reluctor Wheel and Piston Removal

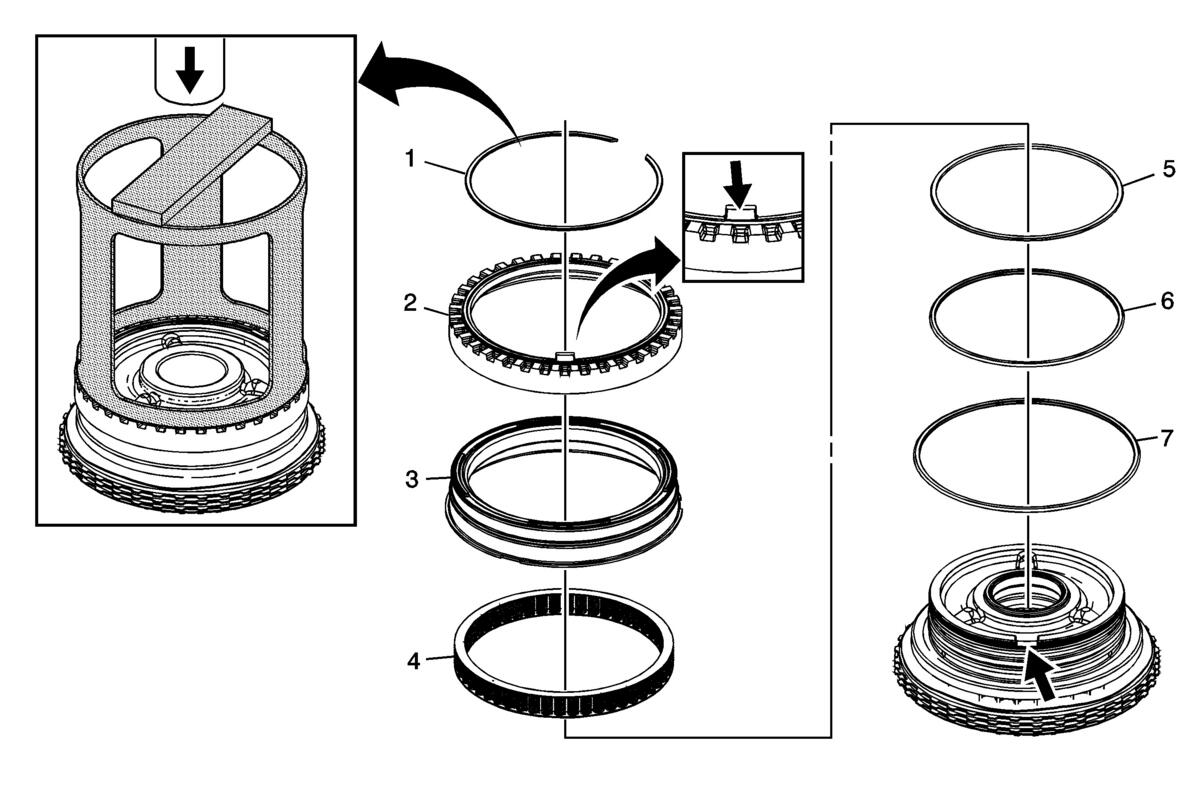

| Callout | Component Name |
|---|---|
| 1 | Input Shaft Speed Sensor Reluctor Ring Retainer Ring
CAUTION:
Compress the reluctor wheel just enough to clear the retainer. Over compressing the reluctor wheel will break the alignment tab and the clutch housing. Special Tool DT-47694 Piston Spring Compressor For equivalent regional tools, refer to Special Tools . |
| 2 | Input Shaft Speed Sensor Reluctor Wheel |
| 3 | 3-5 Reverse Clutch Piston |
| 4 | 3-5 Reverse Clutch Piston Return Spring Assembly |
| 5 | 3-5 Reverse Clutch Piston Inner (Reluctor) Seal (Orange) |
| 6 | 3-5 Reverse Clutch Piston Inner Seal |
| 7 | 3-5 Reverse Clutch Piston Dam Seal (Black) |
