Turbine Shaft Installation

WARNING: This page is about a different variant/trim than selected.

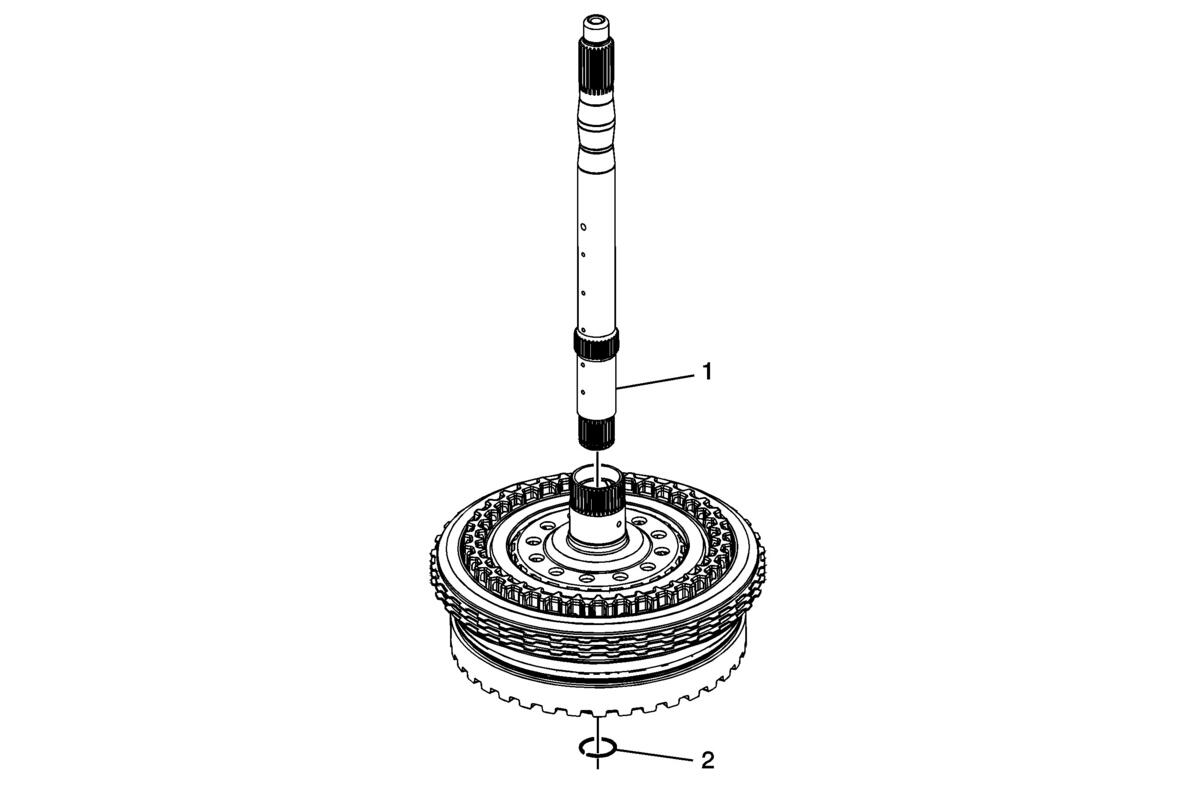

Fig 1: View Of Turbine Shaft
GM1891372Courtesy of GENERAL MOTORS COMPANY
Turbine Shaft Installation

Callout Component Name
1 Turbine Shaft
2 Turbine Shaft Retainer Ring
NOTE:

Do not re-use the turbine shaft retainer ring.


Special Tools
GE5586-A  Snap Ring Pliers or equivalent
For equivalent regional tools, refer to Special Tools .
