4-5-6 Clutch Plates Installation
WARNING: This page is about a different variant/trim than selected.

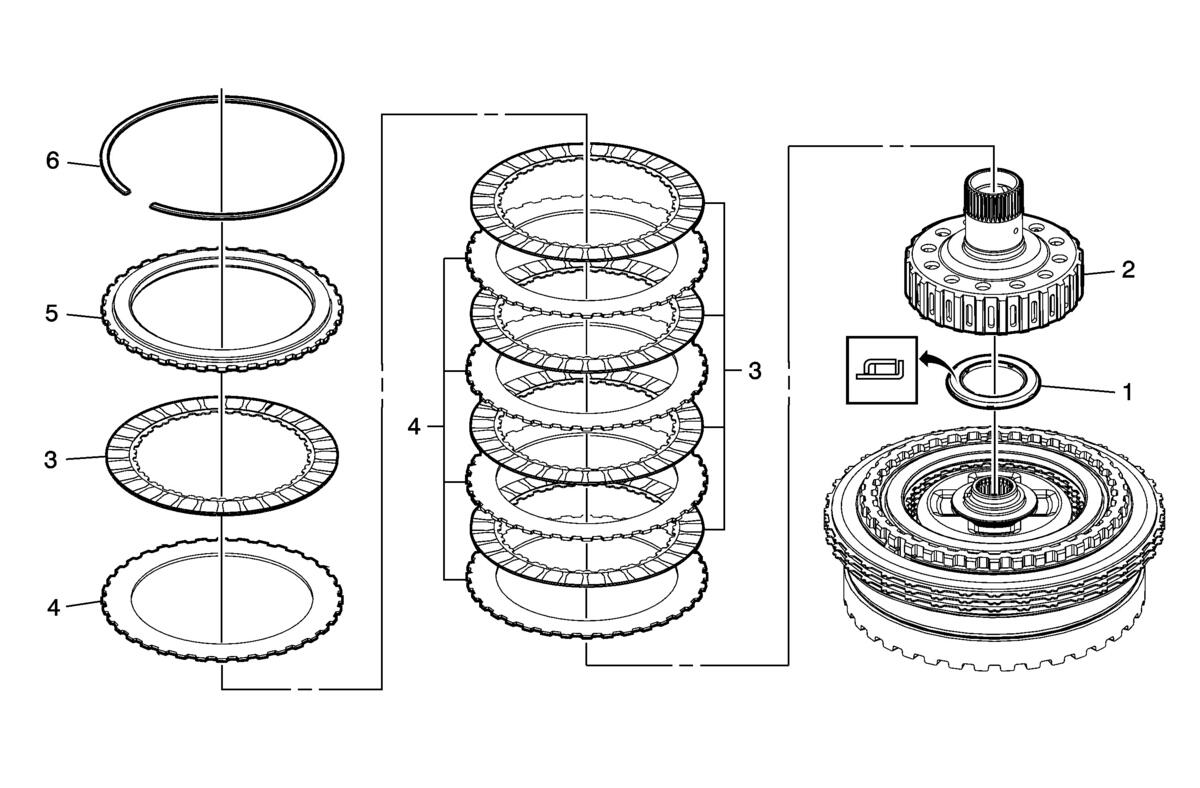

Courtesy of GENERAL MOTORS COMPANY 4-5-6 Clutch Plates Installation
| Callout |
Component Name |
| 1 |
Reaction Carrier Hub Thrust Bearing Assembly |
| 2 |
Reaction Carrier Hub Assembly |
| 3 |
4-5-6 Clutch Plate Assembly (Qty:5) |
| 4 |
4-5-6 Clutch Plate (Qty:5) |
| 5 |
4-5-6 Clutch Backing Plate |
| 6 |
4-5-6 Clutch Backing Plate Retaining Ring |
