4-5-6 Clutch Piston Installation

WARNING: This page is about a different variant/trim than selected.

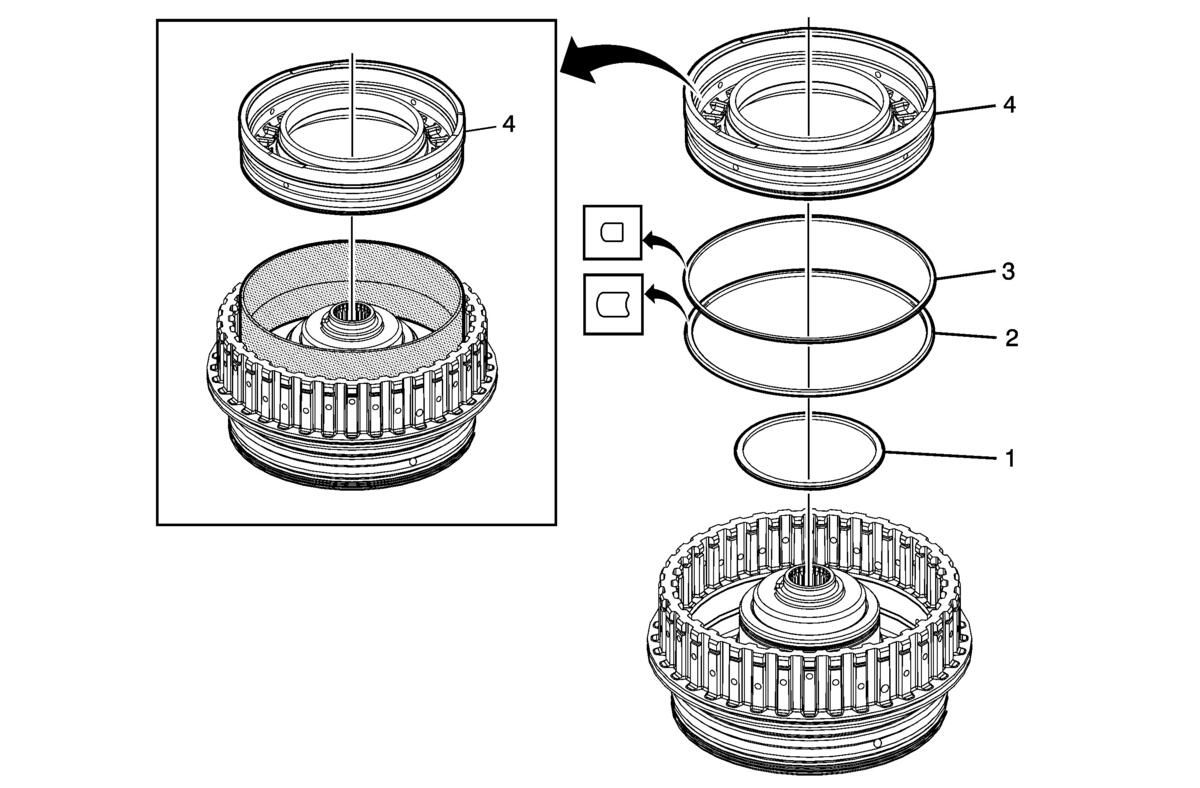

Fig 1: 4-5-6 Clutch Piston

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	4-5-6 Clutch Piston Inner Seal
2	4-5-6 Clutch Piston Outer Seal (Large) (Rounded)
3	4-5-6 Clutch Piston Outer Seal (Dark Blue) (Stepped)
4	4-5-6 Clutch Piston NOTE: DT-47805 seal protector prevents the piston seal lip from damage during installation. Apply a thin coat of ATF to the I.D. of DT-47805 seal protector to ease the installation of the piston. DT-47951-2 spring compressor can be used as a pusher if necessary. Special Tools DT-47805 Seal Protector DT-47951-2 Spring Compressor For equivalent regional tools, refer to Special Tools .
