2-6 Clutch Piston Removal

WARNING: This page is about a different variant/trim than selected.

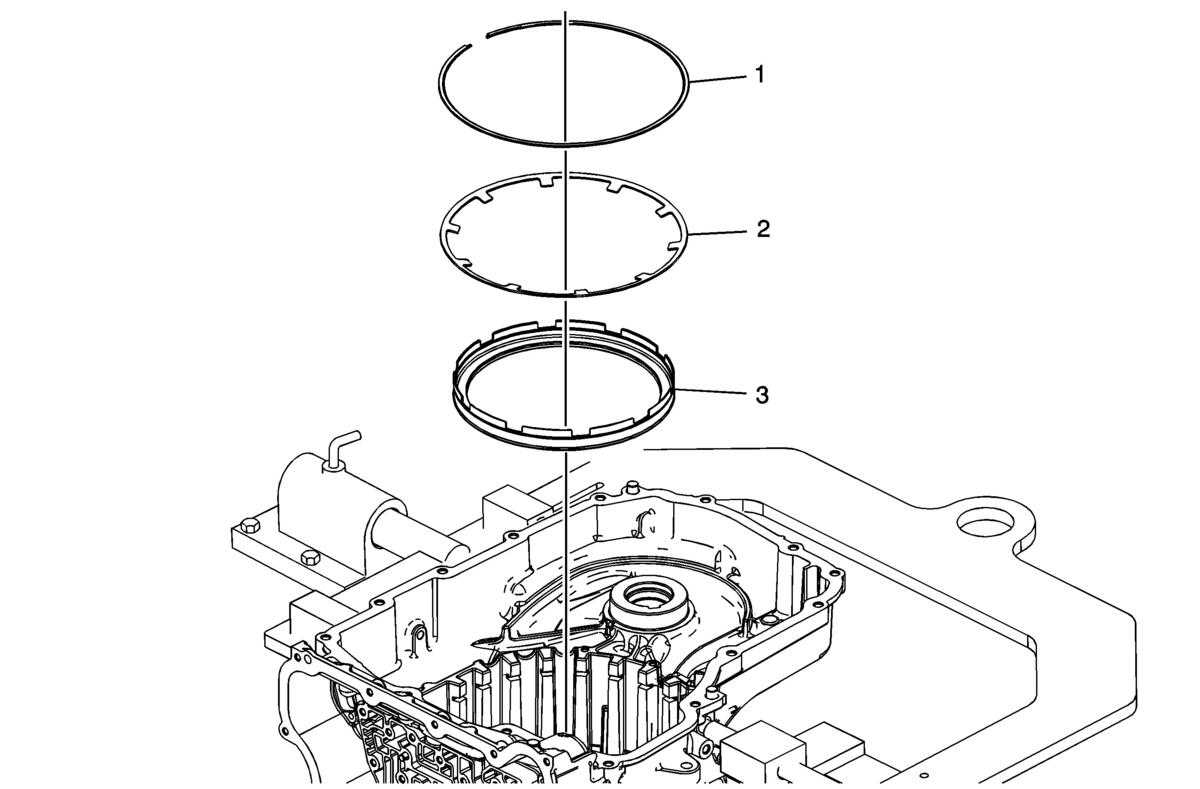

Fig 1: View Of 2-6 Clutch Piston & Attached Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	2-6 Clutch Spring Retainer Special Tool DT-28585 Snap Ring Remover or equivalent For equivalent regional tools, refer to Special Tools .
2	2-6 Clutch Spring
3	2-6 Clutch Piston Assembly NOTE: Use pliers to remove the piston. Inspect the piston seals for damage and/or wear. The piston is reusable.
