Transmission Identification Information
WARNING: This page is about a different variant/trim than selected.

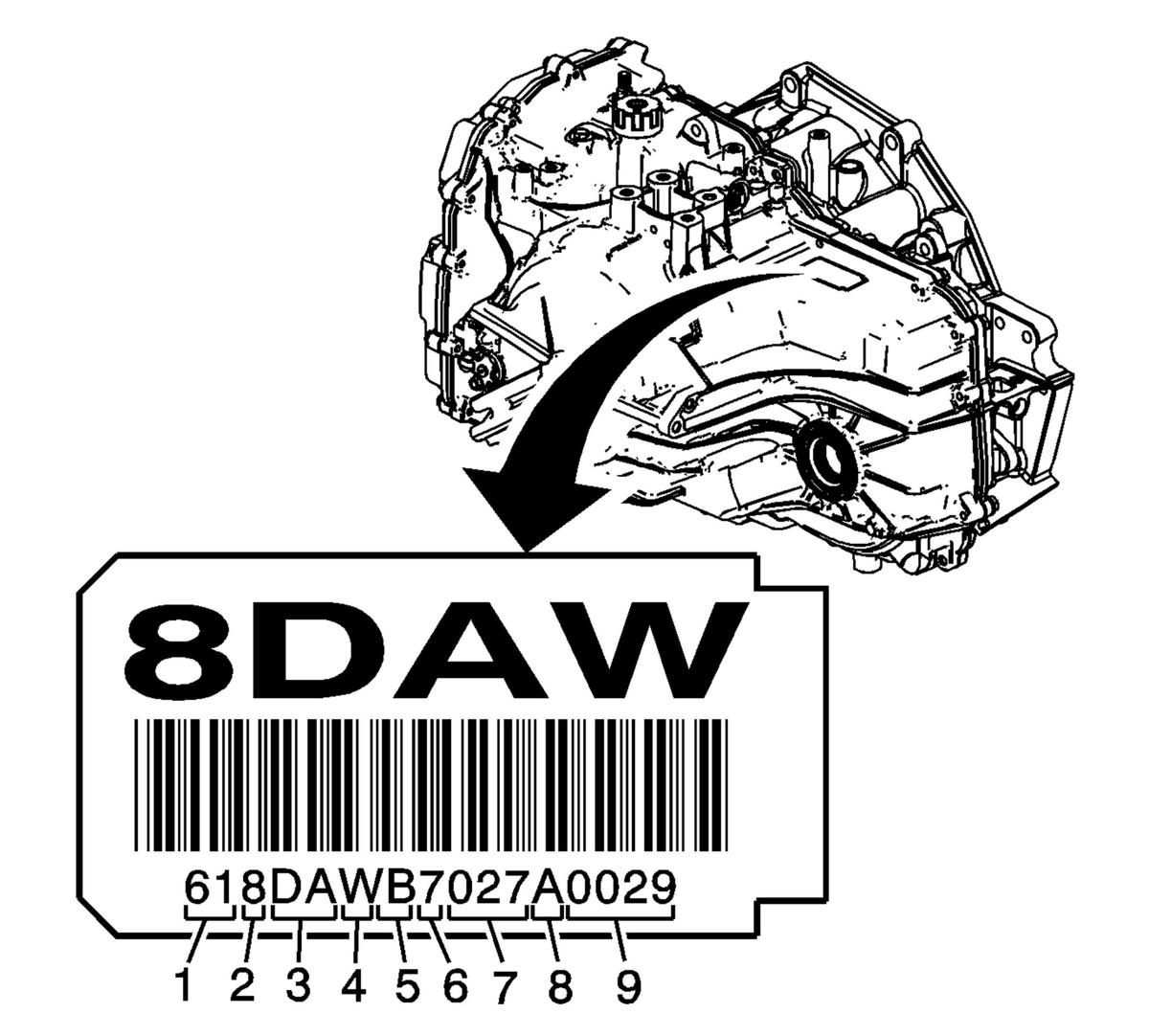

| Callout | Component Name |
|---|---|
| 1 | Code for Automatic Transmission |
| 2 | Model Year |
| 3 | Model for Transmission |
| 4 | Transmission Family |
| 5 | Source Code for Plant |
| 6 | Calender Year |
| 7 | Julian Date |
| 8 | Shift/Line (A/B) |
| 9 | Numeric sequence starting at 000112:01 AM each day |
Source Code for Plant
- 4-Ramos Arizpe, Mexico
- H-Ypsilanti, Michigan
- J-Windsor, Ontario
- K-St. Catharines, Ontario
- S-Strasbourg, France
- W-Warren, Michigan
- Y-Toledo, Ohio
- R-Boryeong, Korea
- M-Yan Tai, Shan Dong, China
- P-San Luis Potosi, Mexico
