ReverseGen 2/Hybrid - A/T System Hydraulic Diagram

WARNING: This page is about a different variant/trim than selected.

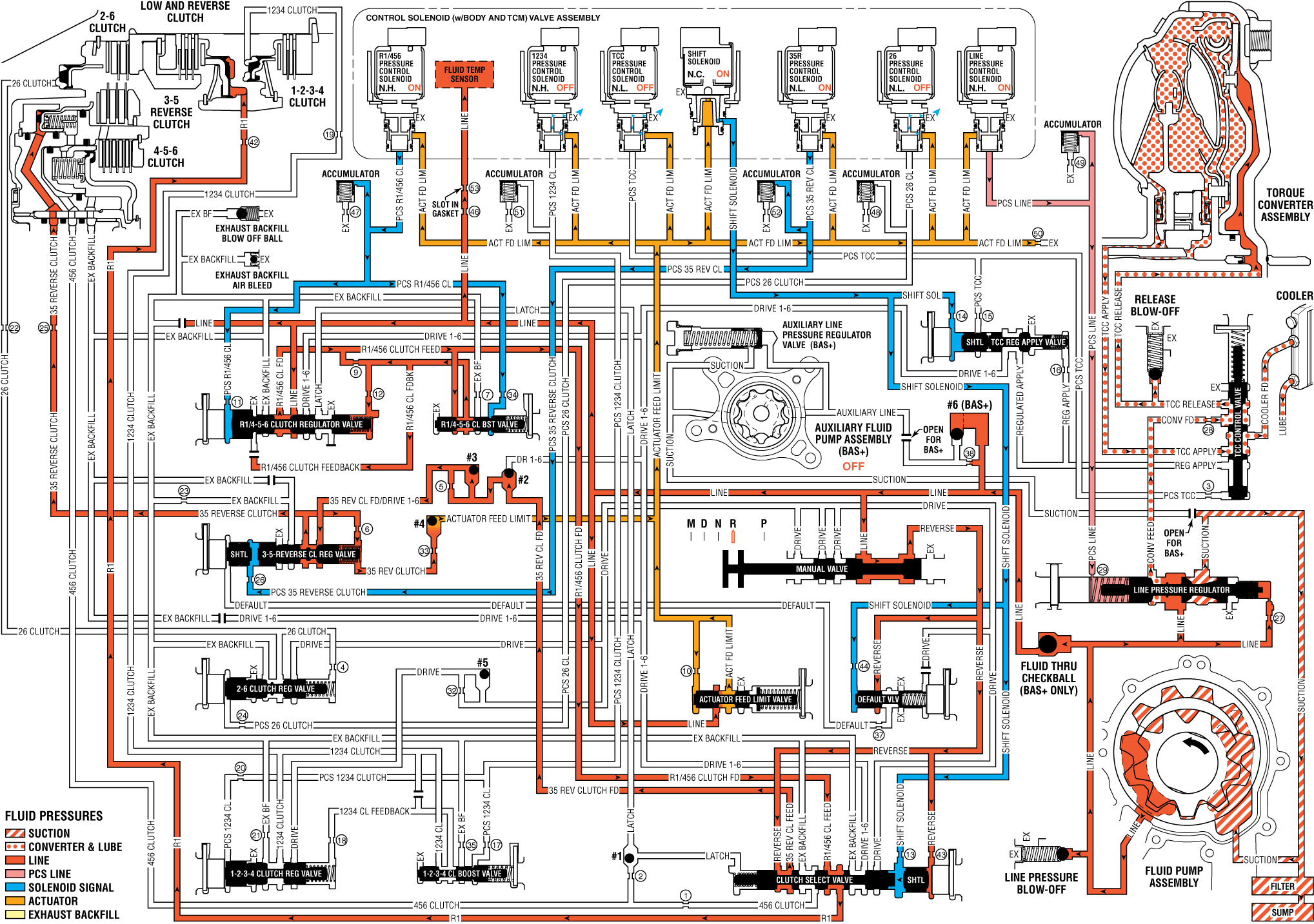

Fig 1: Reverse - Gen 2/Hybrid - A/T System Hydraulic Diagram
GM2609079Courtesy of GENERAL MOTORS COMPANY
