Neutral Engine RunningGen 2/Hybrid - A/T System Hydraulic Diagram

WARNING: This page is about a different variant/trim than selected.

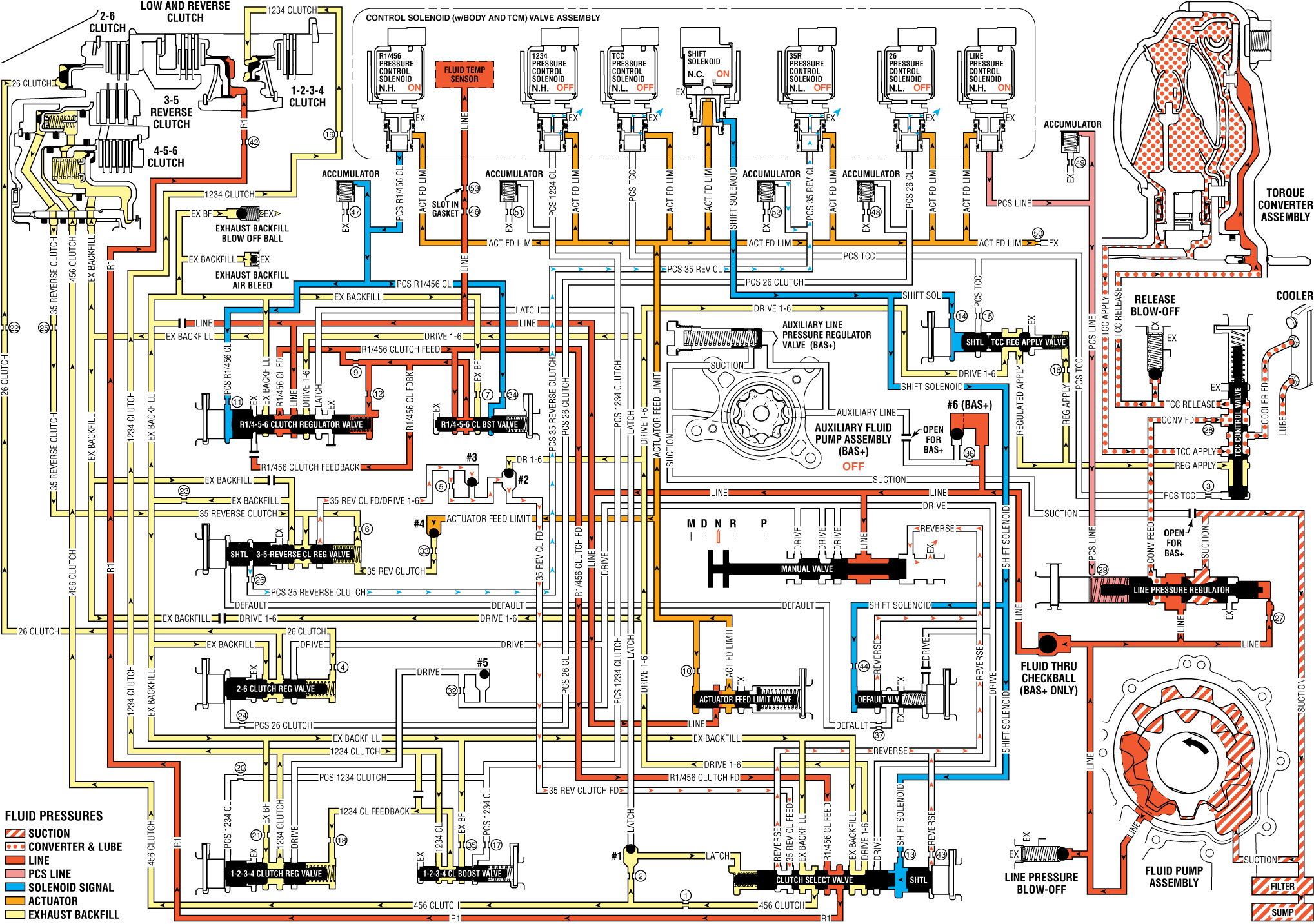

Fig 1: Neutral - Engine Running - A/T System Hydraulic Diagram

Courtesy of GENERAL MOTORS COMPANY
