Torque Converter and Differential HousingCase Side

WARNING: This page is about a different variant/trim than selected.

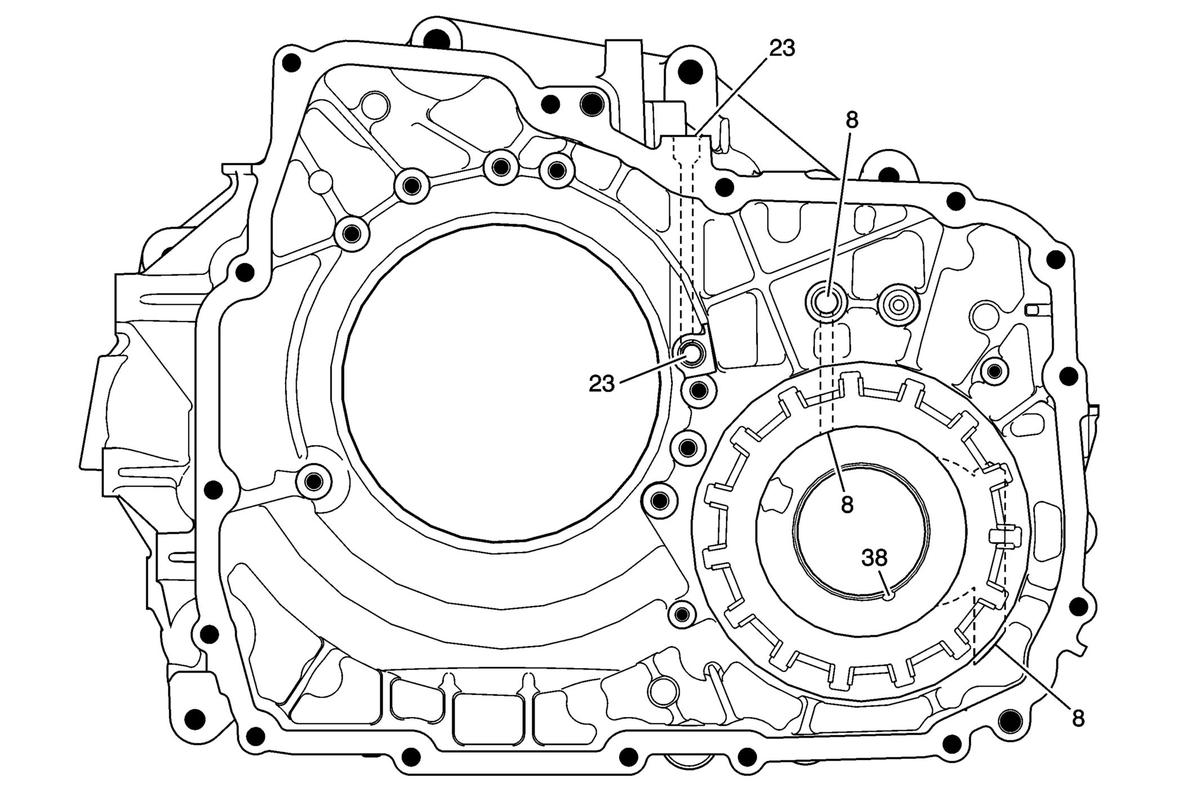

Fig 1: Torque Converter and Differential Housing - Case Side
GM2681122Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
8 Lube
23 Auxiliary Suction (BAS+ Only)
38 Seal Drainback
