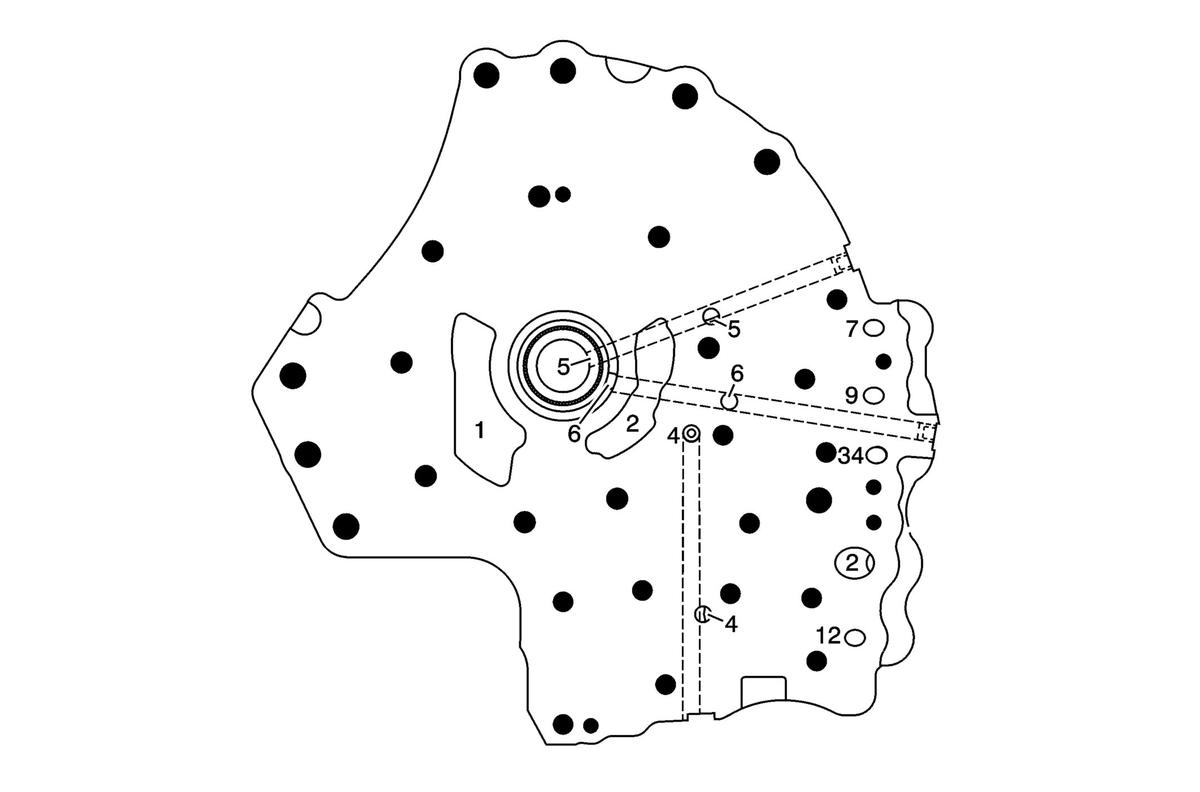

Fluid Pump CoverFluid Pump Body Side
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
| 1 |
Suction |
| 2 |
Line |
| 4 |
Converter Feed |
| 5 |
TCC Release |
| 6 |
TCC Apply |
| 7 |
Cooler Feed |
| 9 |
Regulated Apply |
| 12 |
PCS Line |
| 34 |
PCS TCC |
