Control Valve BodyCase Side
WARNING: This page is about a different variant/trim than selected.

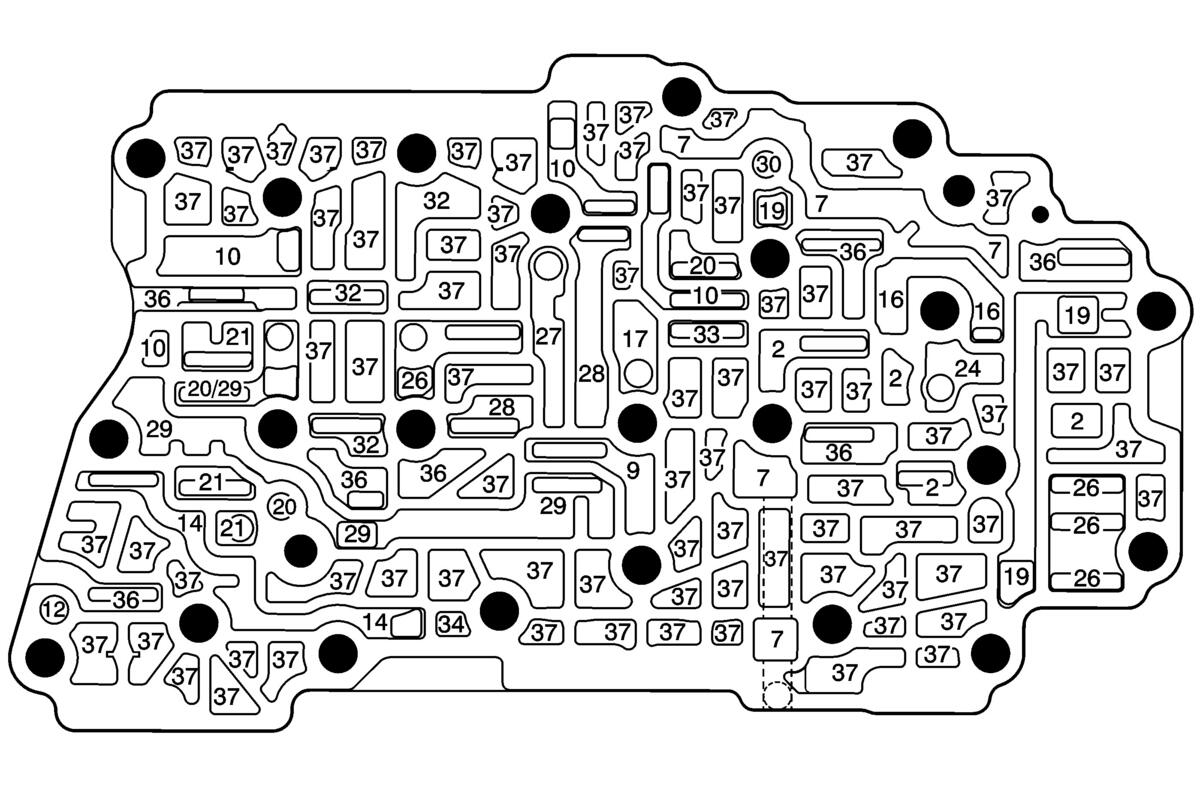

| Callout | Component Name |
|---|---|
| 2 | Line |
| 7 | Cooler Feed |
| 9 | Regulated Apply |
| 10 | Exhaust Backfill |
| 12 | PCS Line |
| 14 | Shift Solenoid |
| 16 | R1/4-5-6 Clutch Feedback |
| 17 | R1 |
| 19 | Reverse |
| 20 | 3-5 Reverse Clutch Feed |
| 21 | 3-5 Reverse Clutch |
| 24 | Auxiliary Line (BAS+ Only) |
| 26 | Drive |
| 27 | 1-2-3-4 Clutch |
| 28 | 1-2-3-4 Clutch Feedback |
| 29 | Drive 1-6 |
| 30 | Latch |
| 32 | 2-6 Clutch |
| 33 | 4-5-6 Clutch |
| 34 | PCS TCC |
| 36 | Exhaust |
| 37 | Void |
