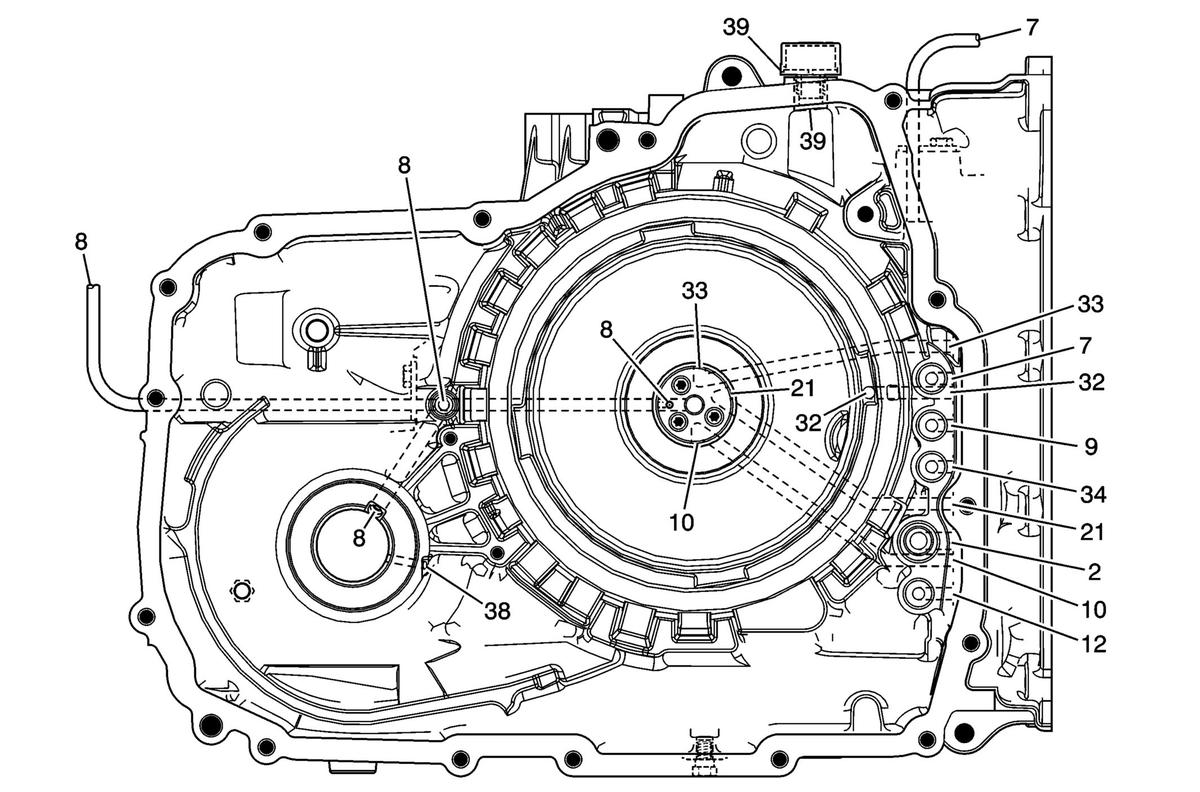

CaseTorque Converter and Differential Housing Side
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
| 2 |
Line |
| 7 |
Cooler Feed |
| 8 |
Lube |
| 9 |
Regulated Apply |
| 10 |
Exhaust Backfill |
| 12 |
PCS Line |
| 21 |
3-5 Reverse Clutch |
| 32 |
2-6 Clutch |
| 33 |
4-5-6 Clutch |
| 34 |
PCS TCC |
| 38 |
Seal Drainback |
| 39 |
Vent |
