Control Solenoid Valve Assembly
WARNING: This page is about a different variant/trim than selected.

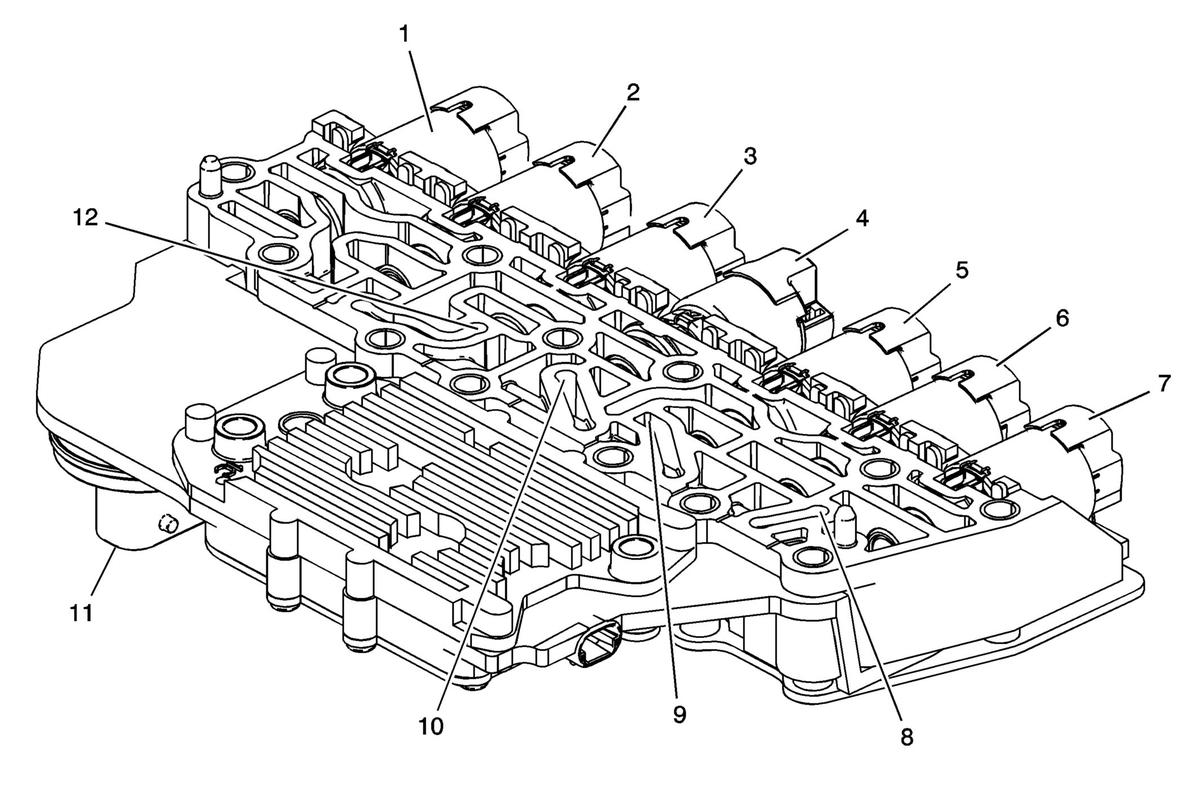

| Callout | Component Name |
|---|---|
| 1 | Pressure Control Solenoid 3 (R1/4-5-6) |
| 2 | (GEN1) Pressure Control Solenoid 2 (3-5 R) |
| 2 | (GEN2) Pressure Control Solenoid 5 (1-2-3-4) |
| 3 | Torque Converter Clutch (TCC) Pressure Control Solenoid |
| 4 | Shift Solenoid 1 (On/Off) |
| 5 | (GEN1) Pressure Control Solenoid 5 (1-2-3-4) |
| 5 | (GEN2) Pressure Control Solenoid 2 (3-5 R) |
| 6 | Pressure Control Solenoid 4 (2-6) |
| 7 | Line Pressure Control Solenoid |
| 8 | (GEN1) Transmission Fluid Pressure (TFP) Switch 1 (3-5 R) |
| 9 | (GEN1) Transmission Fluid Pressure (TFP) Switch 3 (2-6) |
| 10 | (GEN1) Transmission Fluid Pressure (TFP) Switch 4 (1-2-3-4) |
| 11 | Pass Through Connector |
| 12 | (GEN1) Transmission Fluid Pressure (TFP) Switch 5 (4-5-6/R1) |
