Hybrid/EV Cooling Wiring Schematics: Starter/Generator
WARNING:
This page is about a different variant/trim than selected.

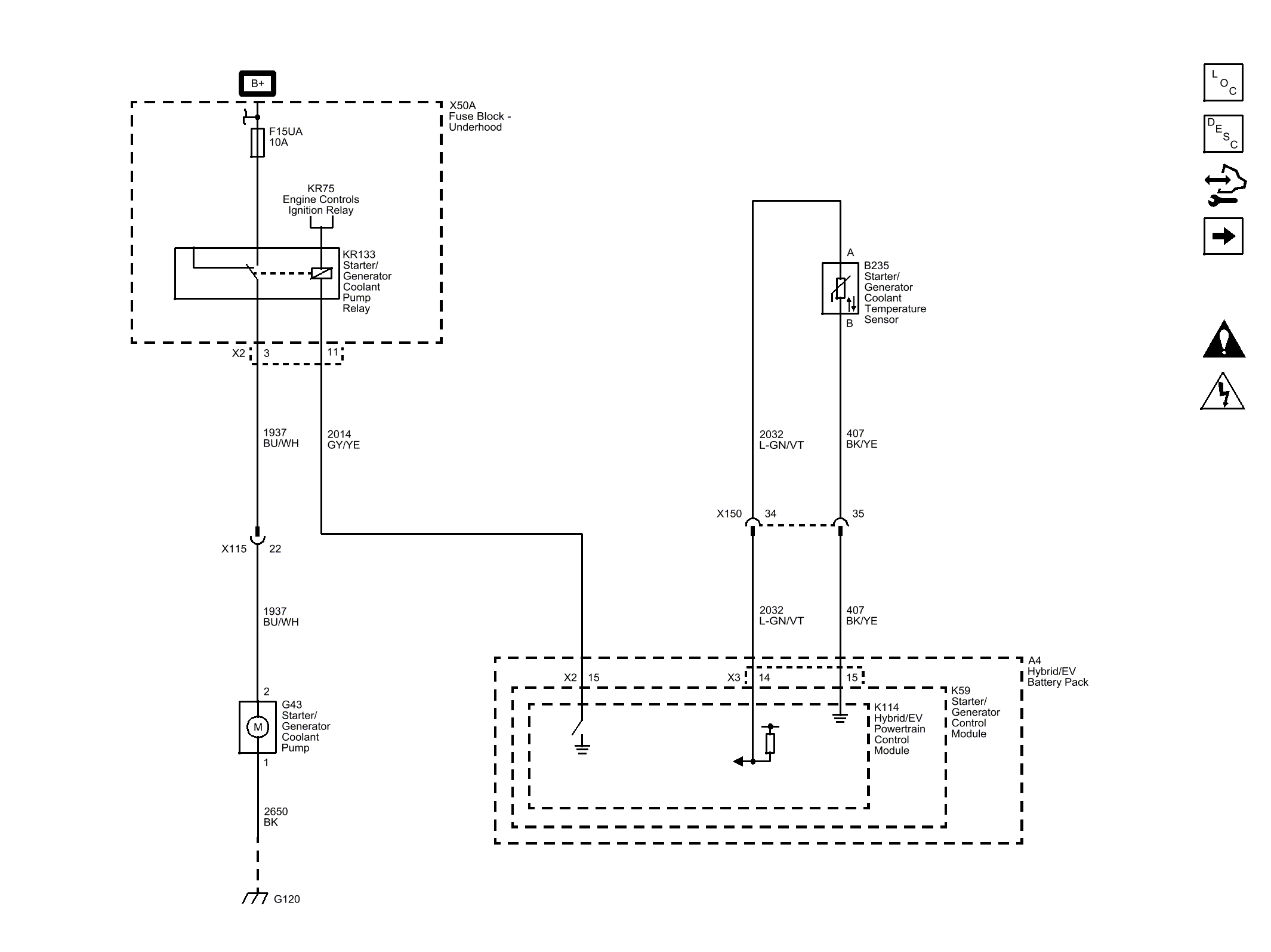

Fig 1: Starter/Generator
Courtesy of GENERAL MOTORS COMPANY
