Heater Outlet Hose Clip Bracket Replacement

WARNING: This page is about a different variant/trim than selected.

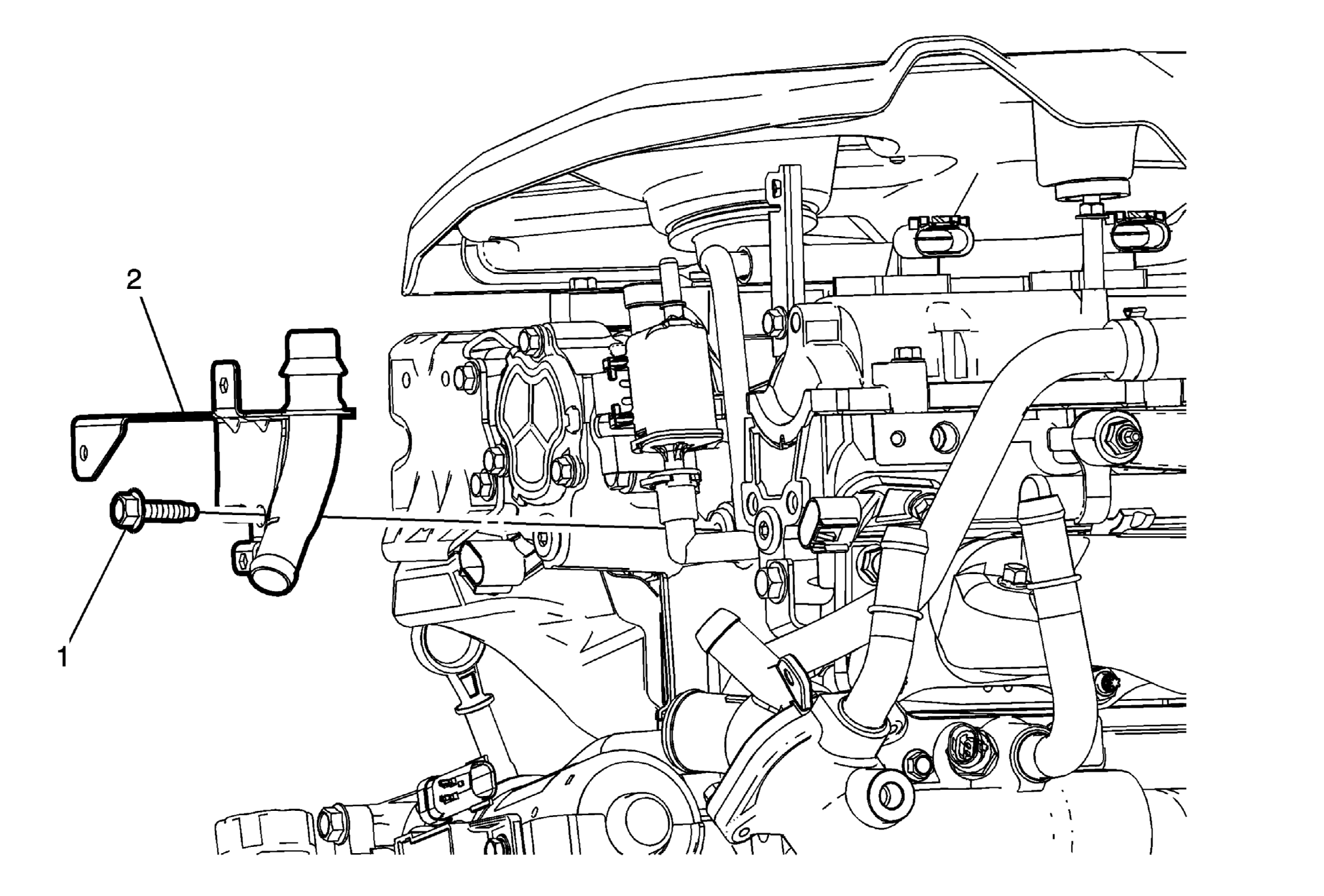

Fig 1: Heater Outlet Hose Clip Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove heater coolant pump hose. Refer to Heater Coolant Pump Hose Replacement . Remove heater inlet hose . Refer to Heater Inlet Hose Replacement (LEA) .
1	Heater Outlet Hose Clip Bracket Fastener
2	Heater Outlet Hose Clip Bracket

Callout

Component Name

Preliminary Procedure

Remove heater coolant pump hose. Refer to Heater Coolant Pump Hose Replacement .
Remove heater inlet hose . Refer to Heater Inlet Hose Replacement (LEA) .

Heater Outlet Hose Clip Bracket Fastener

Heater Outlet Hose Clip Bracket
