Generator Control Module Cooling Air Inlet Duct Replacement

WARNING: This page is about a different variant/trim than selected.

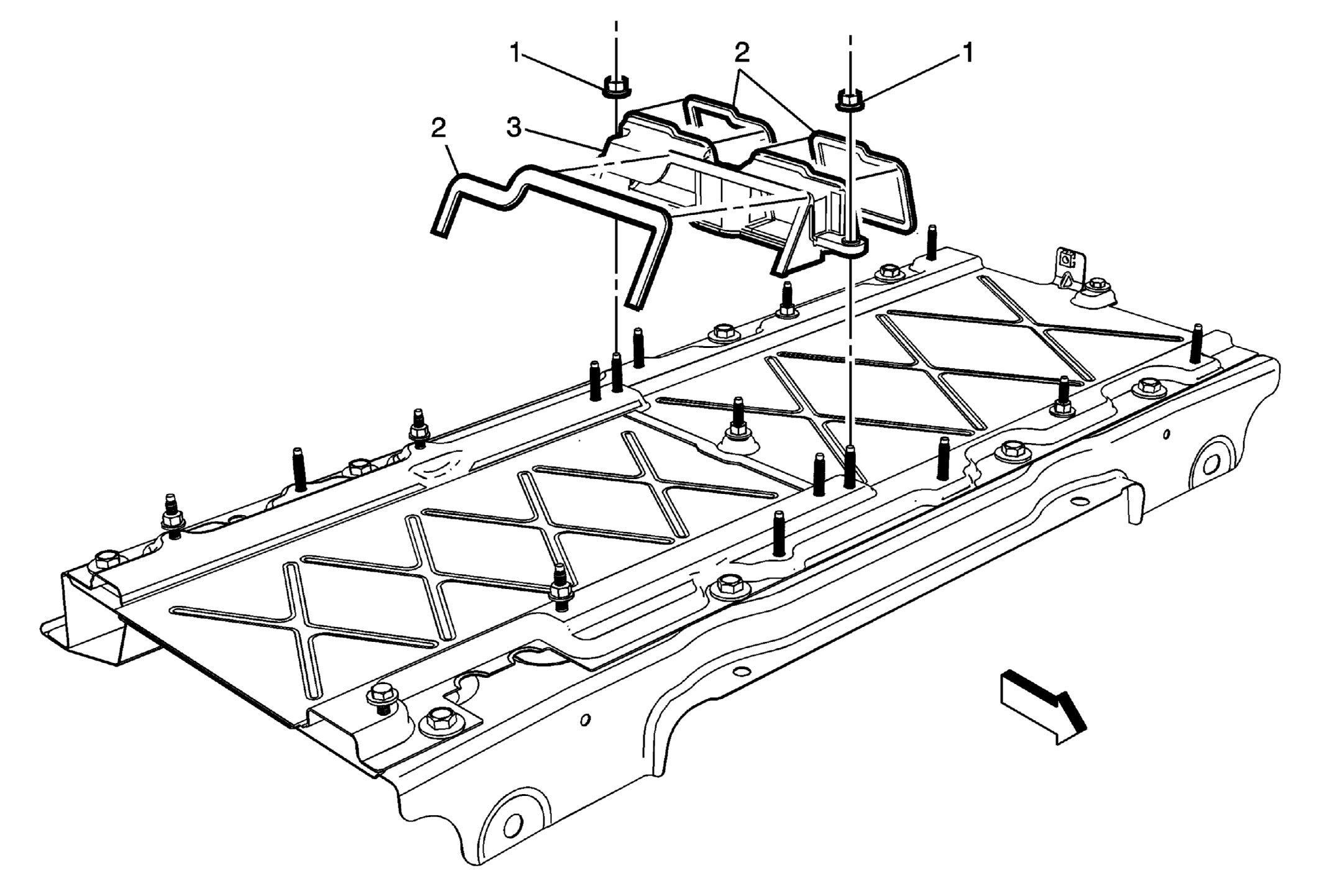

Fig 1: Generator Control Module Cooling Air Inlet Duct, Seals & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disable the hybrid battery. Refer to High Voltage Disabling . Remove the generator battery. Refer to Generator Battery Replacement . Remove the generator control module. Refer to Generator Control Module Replacement .
1	Generator Control Module Cooling Air Inlet Duct Fasteners CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in).
2	Generator Control Module Cooling Air Inlet Duct Seals NOTE: Replace seals if worn or damaged.
3	Generator Control Module Cooling Air Inlet Duct
