Generator Control Module Coolant Pump Replacement

WARNING: This page is about a different variant/trim than selected.

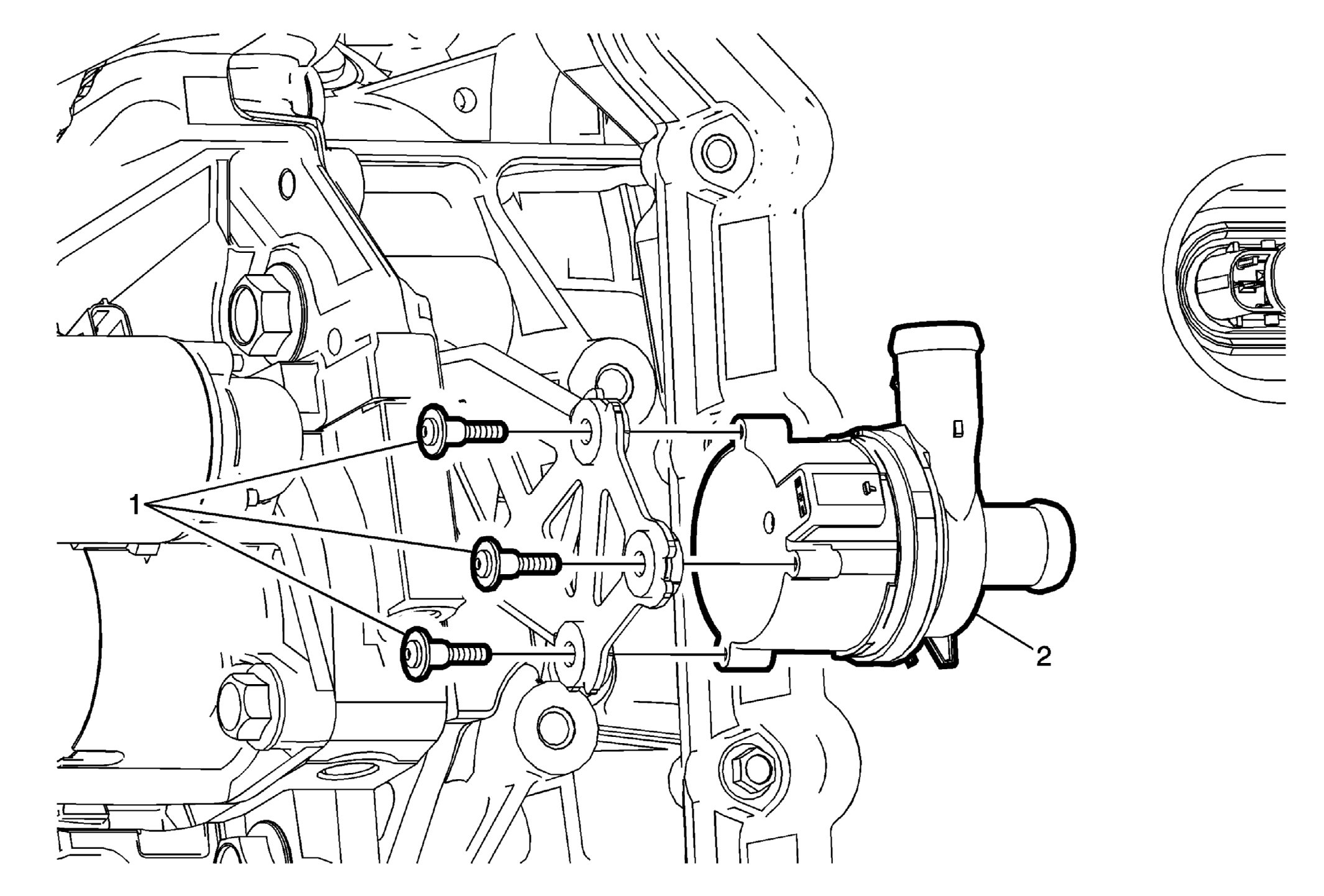

Fig 1: Generator Control Module Coolant Pump & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove intake Manifold cover. Refer to Intake Manifold Cover Replacement . Remove generator Control module coolant outlet hose. Refer to Generator Control Module Coolant Outlet Hose Replacement .
1	Generator Control Module Coolant Pump Fastener (Qty: 3) CAUTION: Refer to Fastener Caution .
2	Generator Control Module Coolant Pump

Callout

Component Name

Preliminary Procedures

Remove intake Manifold cover. Refer to Intake Manifold Cover Replacement .
Remove generator Control module coolant outlet hose. Refer to Generator Control Module Coolant Outlet Hose Replacement .

Generator Control Module Coolant Pump Fastener (Qty: 3)

CAUTION:

Generator Control Module Coolant Pump
